This is my review on my experience with the interior LED change over. Carolinaboy and I decided to each buy these bulb and post our feedback. I have a 2004 Supercab XLT. No door lights, no visor vanity lights, or rear seat map lights. Just front two maps and the rear dome. After a months debate on what specific LEDs to go with,.
For the front map lights, I settled for the 13 SMT LED 194 bulbs that come as a pair from V-Leds.com ( part #194_13_SMT_W. These bulbs offer 3 forward shooting bulbs, and 10 side firing bulbs. They light the front up perfect, you will need a very side shooting bulb so it reflects light off of the reflective backing in the map light console.

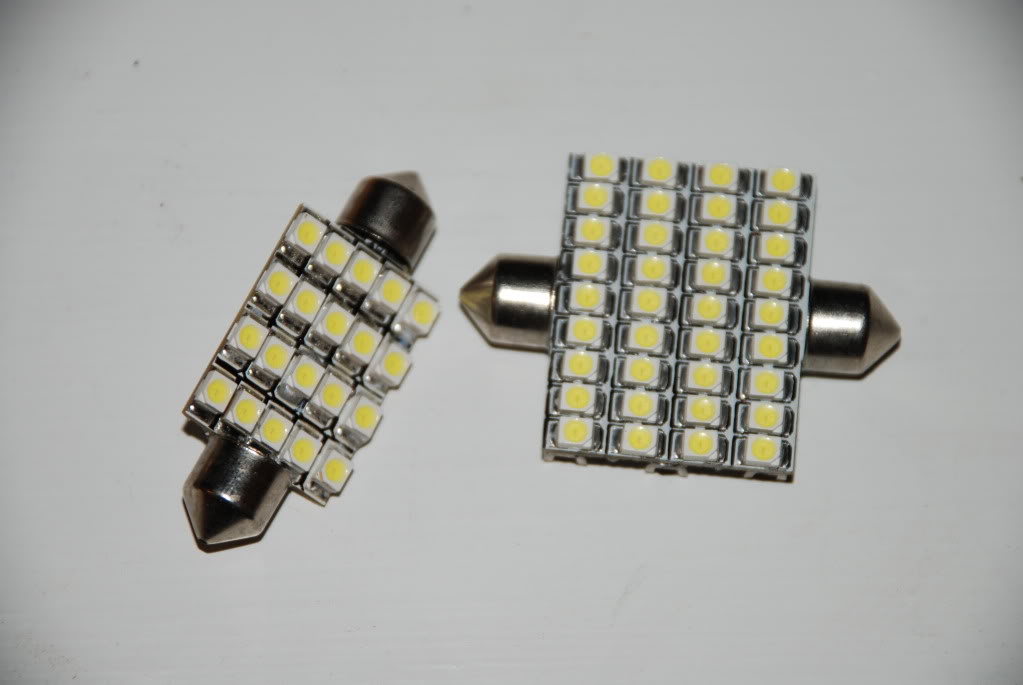

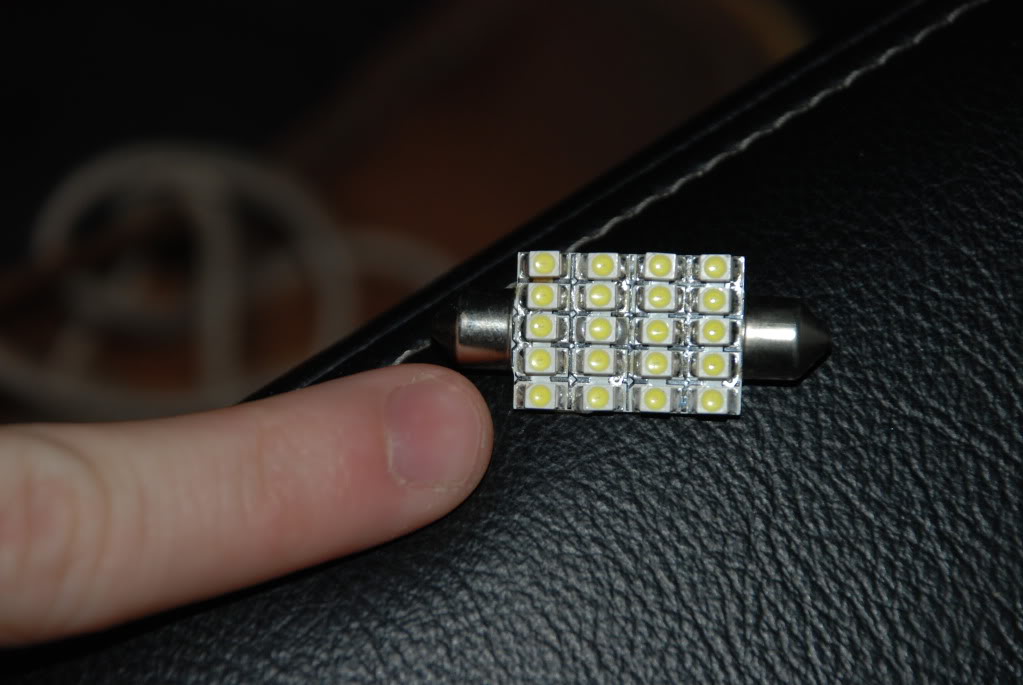

For the rear dome, I did countless measurements to debate whether I would go with V-Led's 36 LED festoon bulb, or the 20 LED version. Measurements proved the 36 LED board would be 1/16th of an inch too wide for the currents for the bulb, so I settled for the 20LED part #211_20_W which fits just perfect. Almost too big even.
They both match perfectly, giving what they say, a 6000k HID hue. Looking at the bulb housings they appear to be slightly blue, but in person they are quite white. They light up my XLT's interior much better than the filament bulbs did. Together they were $27.98, and $33.27 shipped. Well worth it for the much more enhanced lighting color, and output produced.
Onto the photos and simple instructions.
All photos were shot with the same aperture and shutter settings to help better display the output difference and color change.

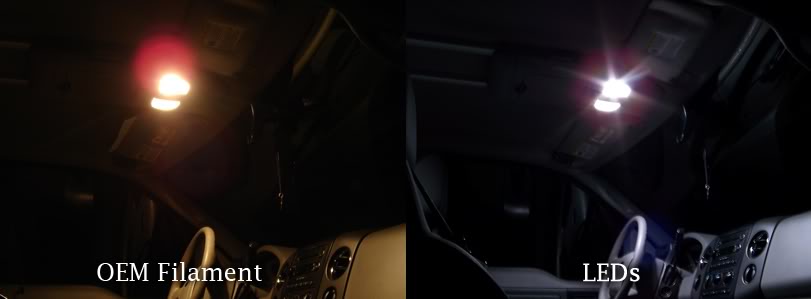

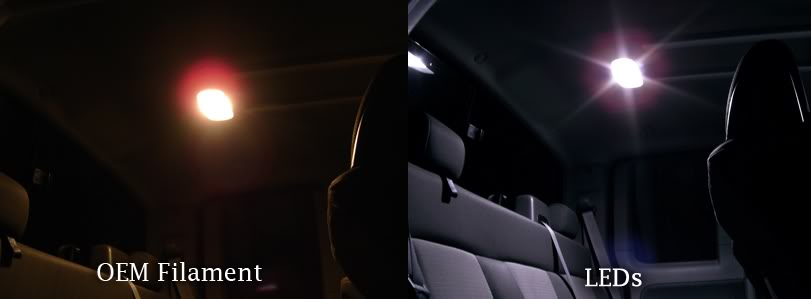

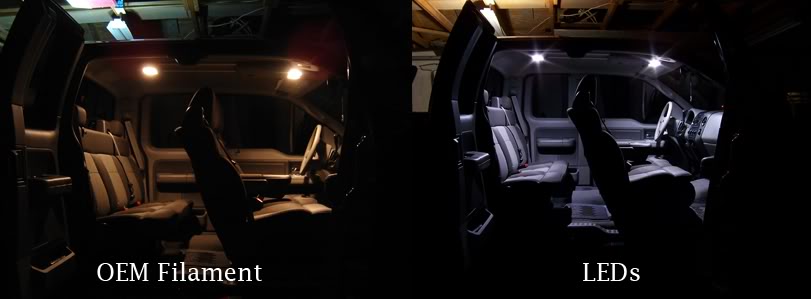

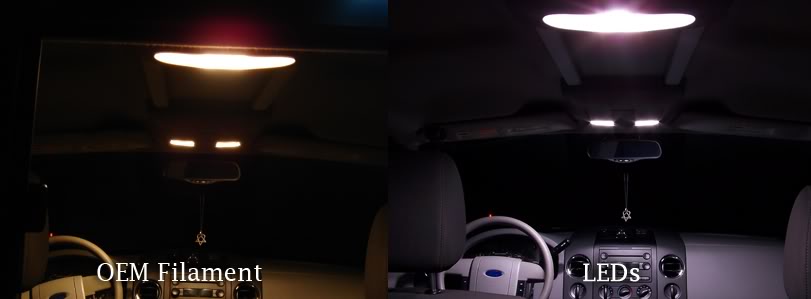

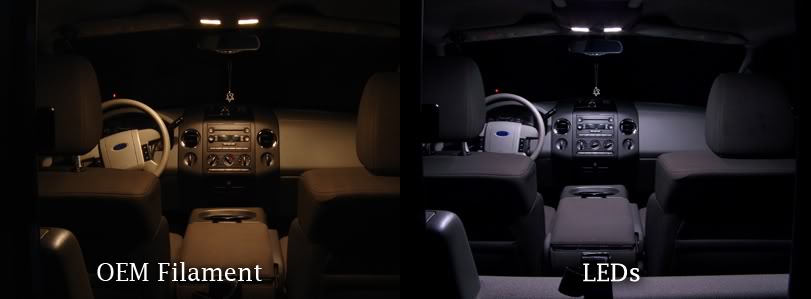

Here is how these LED bulbs compare to the factory standard filaments.
I have the overhead rail cargo system.
http://i695.photobucket.com/albums/v...s/100_0663.jpg
To remove the overhead consoles to access the light, remove the storage bin(s) and take a flat head screwdriver under the console.
Dont worry about creating scratches, the console bin re-insterted will hide them. Twist the driver to pop it down, and pull one side loose with your figners, repeat the same on the other side. Once both ends are loose, pull straight down with light force, the console will come loose and hang by the dome wiring. Then you will be able to unscrew the map light bulb sockets and swap the bulbs out. If the LEDs do not light up, pull them out of the sockets and rotate them 180 degrees and re-insert them. LEDs are polarity sensitive and draw current in certain ways.

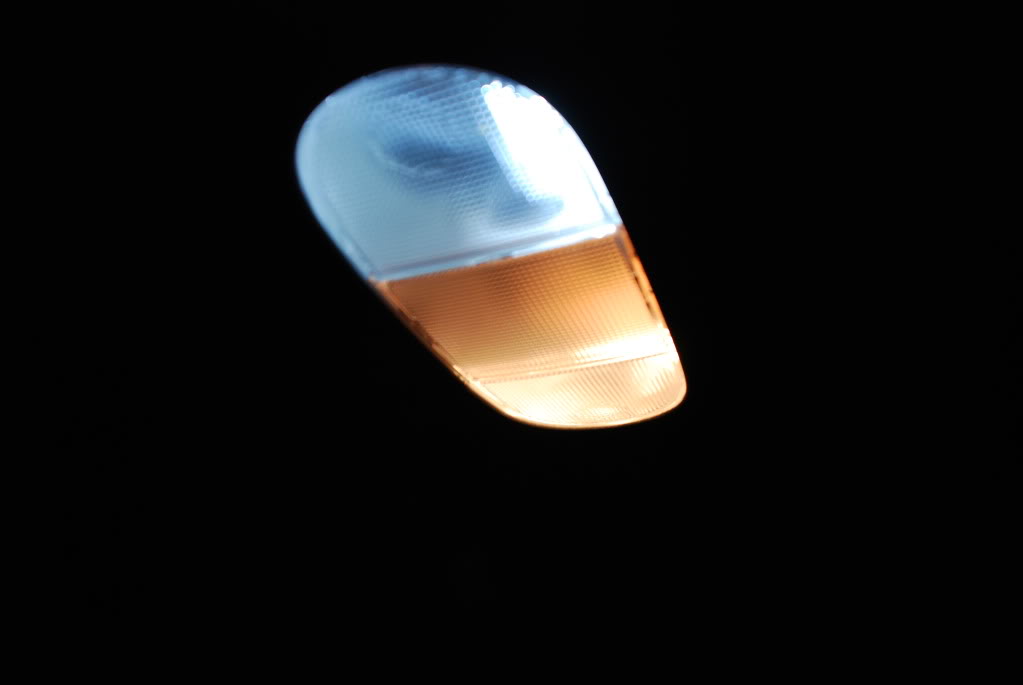

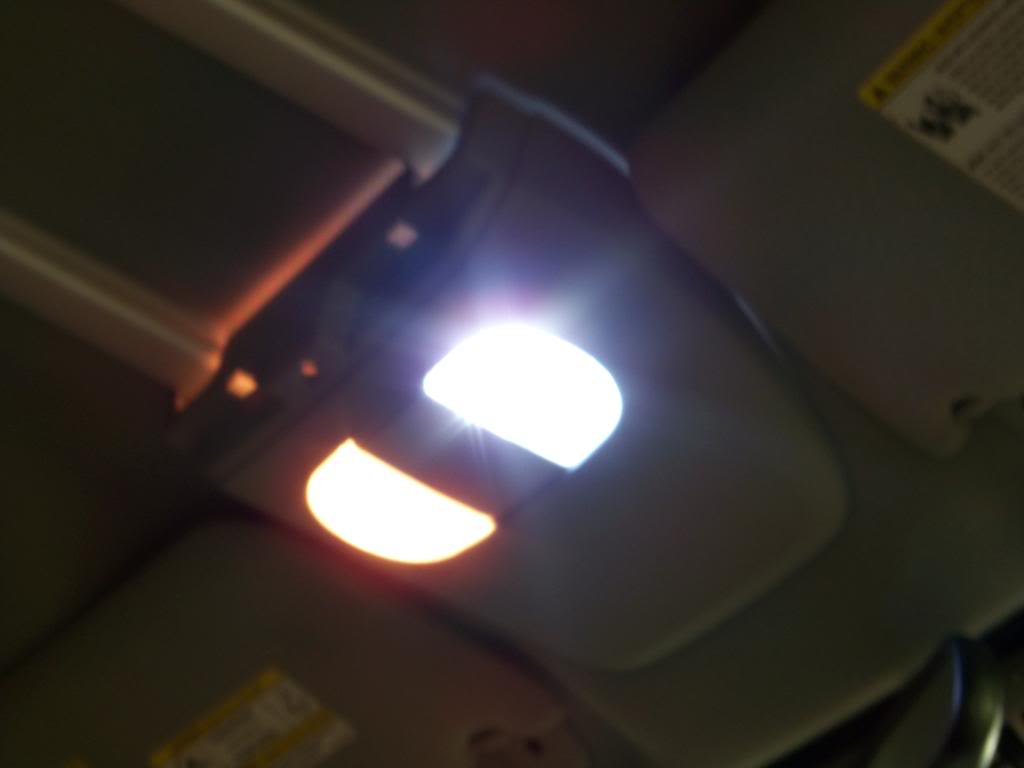

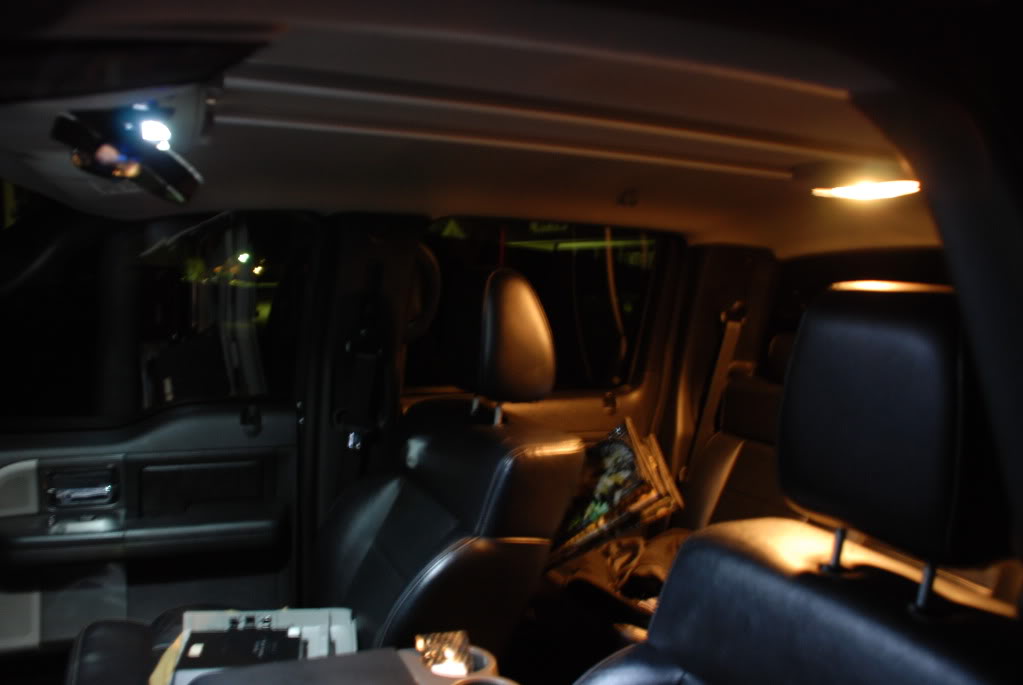

Doing one side first is a good way to compare the output difference and color difference.
And here is the clearance for the 20 LED festoon.

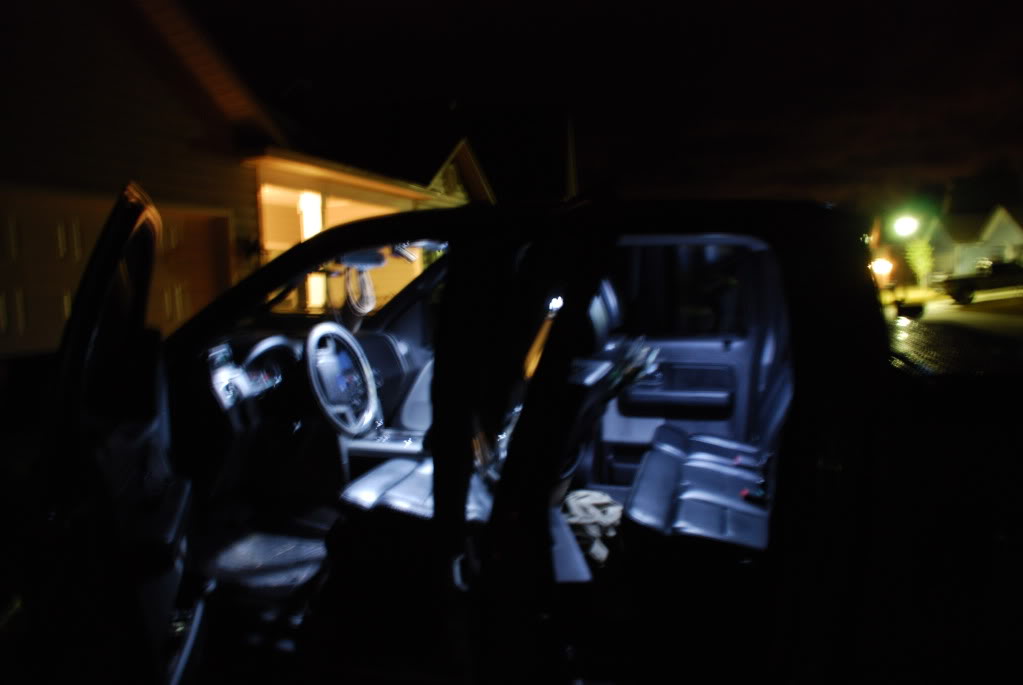

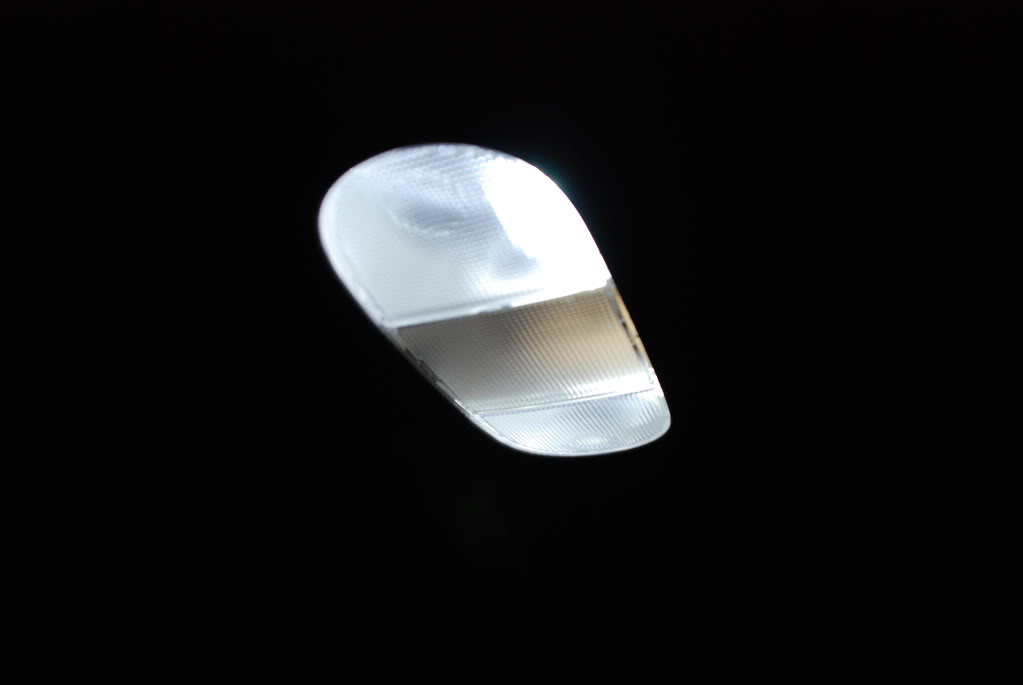

Done and installed. ( To see full sized photos, click here )
This concludes my report on a dome LED change over. Everyone with $30 bucks to blow should do this!
For the front map lights, I settled for the 13 SMT LED 194 bulbs that come as a pair from V-Leds.com ( part #194_13_SMT_W. These bulbs offer 3 forward shooting bulbs, and 10 side firing bulbs. They light the front up perfect, you will need a very side shooting bulb so it reflects light off of the reflective backing in the map light console.
For the rear dome, I did countless measurements to debate whether I would go with V-Led's 36 LED festoon bulb, or the 20 LED version. Measurements proved the 36 LED board would be 1/16th of an inch too wide for the currents for the bulb, so I settled for the 20LED part #211_20_W which fits just perfect. Almost too big even.
They both match perfectly, giving what they say, a 6000k HID hue. Looking at the bulb housings they appear to be slightly blue, but in person they are quite white. They light up my XLT's interior much better than the filament bulbs did. Together they were $27.98, and $33.27 shipped. Well worth it for the much more enhanced lighting color, and output produced.
Onto the photos and simple instructions.
All photos were shot with the same aperture and shutter settings to help better display the output difference and color change.
Here is how these LED bulbs compare to the factory standard filaments.
I have the overhead rail cargo system.
http://i695.photobucket.com/albums/v...s/100_0663.jpg
To remove the overhead consoles to access the light, remove the storage bin(s) and take a flat head screwdriver under the console.
Dont worry about creating scratches, the console bin re-insterted will hide them. Twist the driver to pop it down, and pull one side loose with your figners, repeat the same on the other side. Once both ends are loose, pull straight down with light force, the console will come loose and hang by the dome wiring. Then you will be able to unscrew the map light bulb sockets and swap the bulbs out. If the LEDs do not light up, pull them out of the sockets and rotate them 180 degrees and re-insert them. LEDs are polarity sensitive and draw current in certain ways.
Doing one side first is a good way to compare the output difference and color difference.

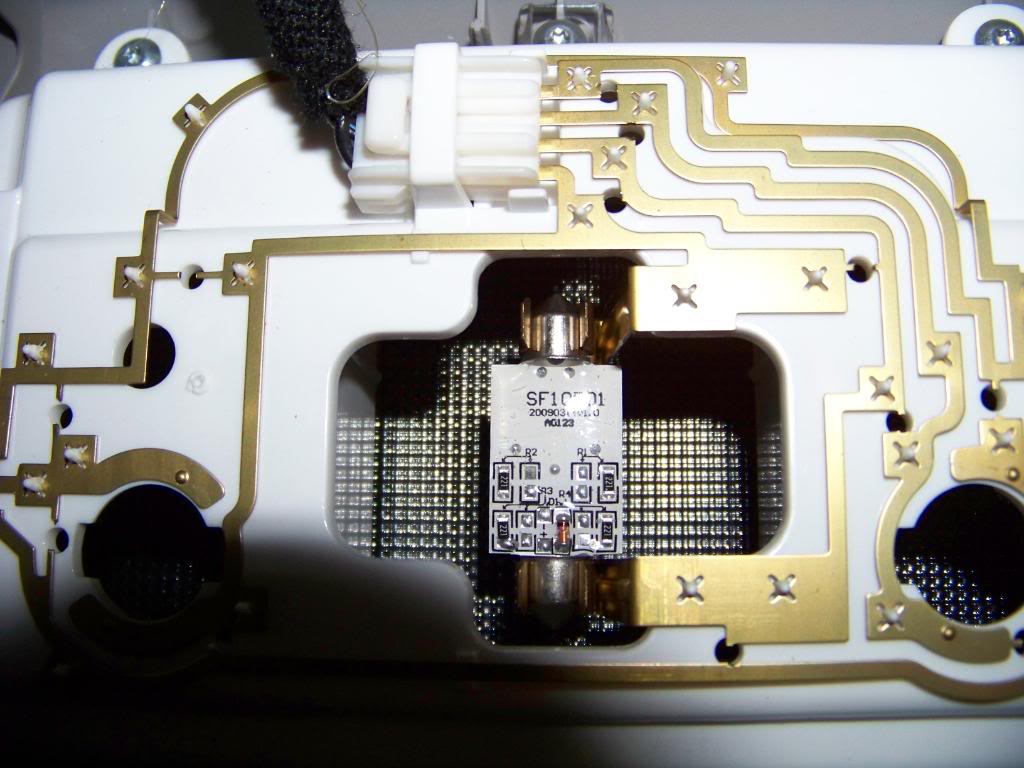

And here is the clearance for the 20 LED festoon.
Done and installed. ( To see full sized photos, click here )
This concludes my report on a dome LED change over. Everyone with $30 bucks to blow should do this!
