Ok, after reading all the various way you folks have done this, I took the plunge. However, with a very slight difference in going about it. My truck is a 2004 F150 SCab FX4 with only 54,000 miles.
To put it quite simple you need only one part for this mod. That part is the Speed by Spectre - Air Ducting Part # 8741 (number different if colored other than black) http://www.oreillyauto.com/site/c/de...0&keyword=8741. It comes with rubber connectors/couplings on both ends, with a slightly narrower section that will fit perfectly into both the main body of the original 2004-2008 air intake and the oblong fender holes.
Simply work the Spectre (expanding bellows completely compressed) 3" hose to fill the rubber coupling that will go in to the abs plastic air intake, the work the coupling into the ABS plastic intake up to the larger section of coupling that will keep it from going too far in. Next you will then work the proper amount of the Spectre tubing (compressed once again) through the end that will go through both the inner and outer fender holes (use the measurement of the original fender grommet to the snorkel end and add maybe a 1/4"), then work the coupling into the fender hole up to the larger section of the coupling. The excess Specter tubing sticking through this coupling should get you through both holes and take care of the leaves that may get sucked etc. The rubber connectors are identical on both ends of the Spectre hose, just make sure you have the two large ends of the coupling facing each other. Once these are pushed in tightly they will not pull out easily. Also, you will notice in my pics that it leaves almost 3" of compressed hose next to the ABS plastic stock intake to compensate for any engine twisting for torque caused by hard acceleration or towing.
Now I added a stainless clamp to the end the original ABS plastic intake opening, and tightened it down just for piece of mind. However, I can say this ... I removed it twice (prior to the clamp addition) making the adjustments I wanted to the hose to get it through both fender holes and it was pretty hard to remove either end once pushed into the holes completely without the clamp, so the clamp is really not needed. Mainly I just wanted the plastic end to look cleaner.
As you can see from the pics below, I did not use any home depot or lowes downspouts etc, I used only the $19.99 Spectre hose and it took almost no time at all. Yes, you can do it a dollar or two cheaper, but this was one stop, one piece and very clean.
As for results, not exactly sure yet as I am waiting for my replacement Edge Evo to be returned from Edge, as my original one kept losing it's memory and having to have it's external memory re-flashed, so the good folks at edge are replacing it.

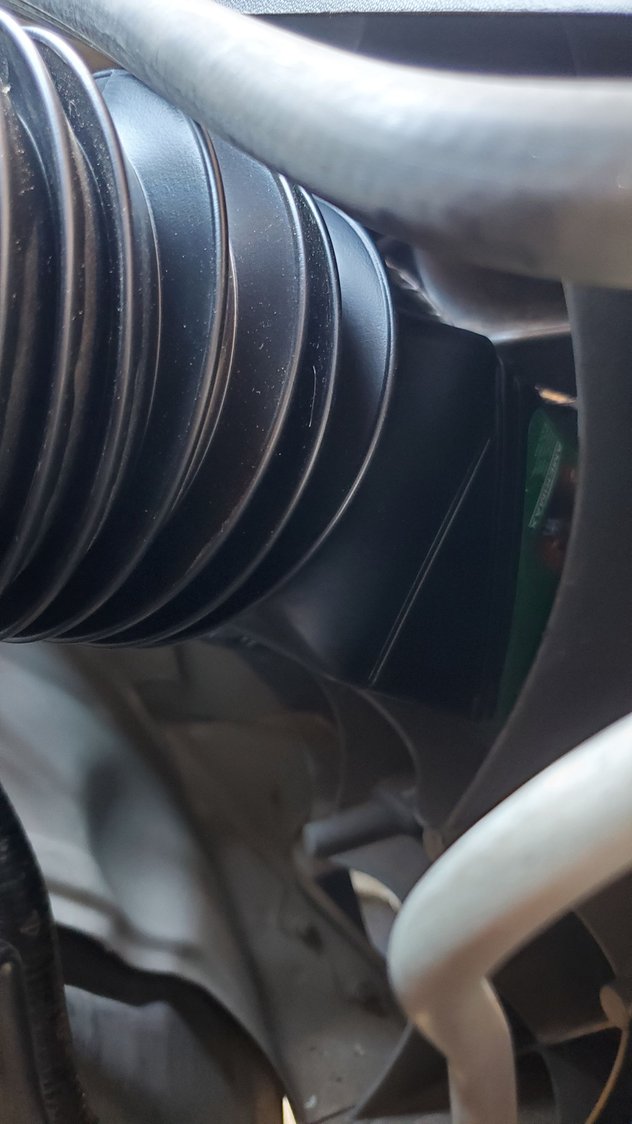

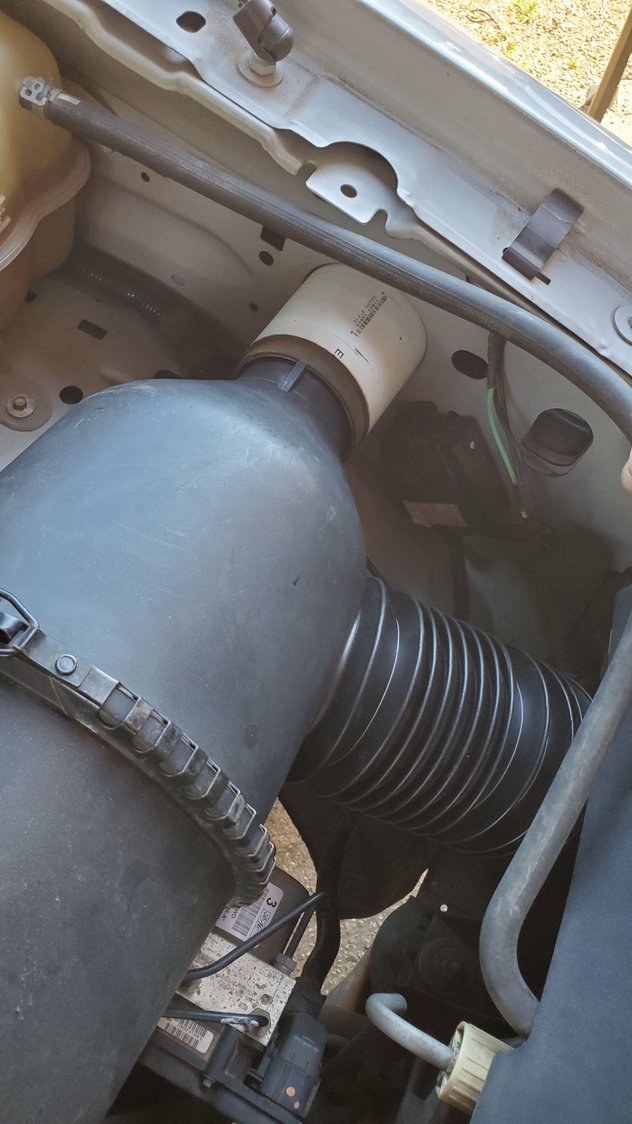

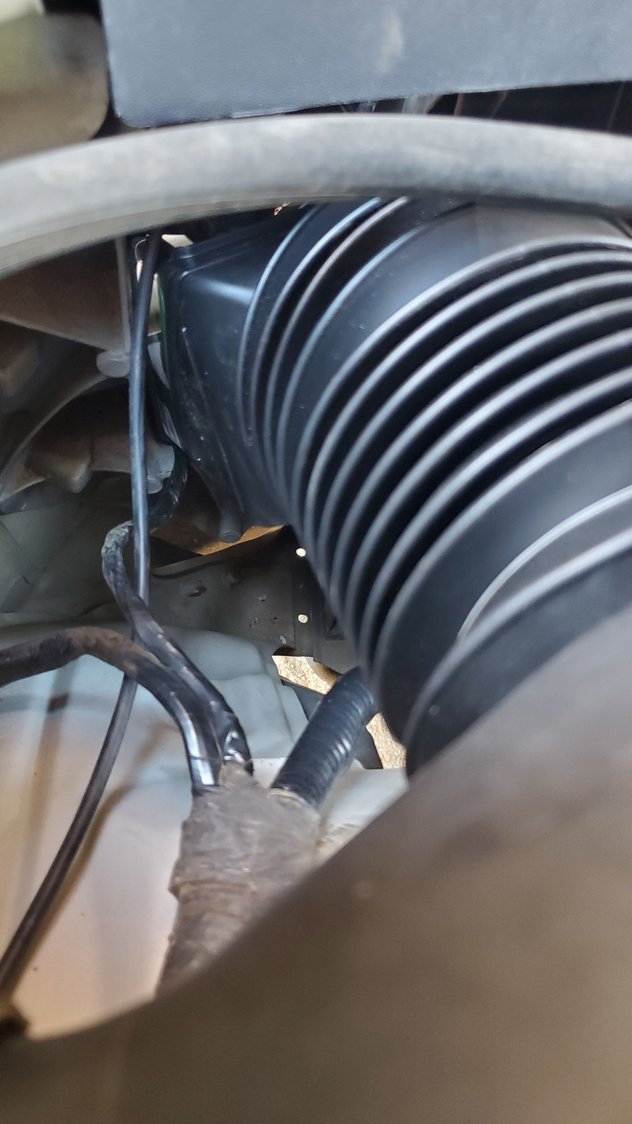

Here are a few pics and if I do say so myself it looks much cleaner.
I tried to add this to the original How To Thread, but was unable to. With that said I hope the administration and the rest of you good folks do not mind my me adding my version of this little mod to the forums.
To put it quite simple you need only one part for this mod. That part is the Speed by Spectre - Air Ducting Part # 8741 (number different if colored other than black) http://www.oreillyauto.com/site/c/de...0&keyword=8741. It comes with rubber connectors/couplings on both ends, with a slightly narrower section that will fit perfectly into both the main body of the original 2004-2008 air intake and the oblong fender holes.
Simply work the Spectre (expanding bellows completely compressed) 3" hose to fill the rubber coupling that will go in to the abs plastic air intake, the work the coupling into the ABS plastic intake up to the larger section of coupling that will keep it from going too far in. Next you will then work the proper amount of the Spectre tubing (compressed once again) through the end that will go through both the inner and outer fender holes (use the measurement of the original fender grommet to the snorkel end and add maybe a 1/4"), then work the coupling into the fender hole up to the larger section of the coupling. The excess Specter tubing sticking through this coupling should get you through both holes and take care of the leaves that may get sucked etc. The rubber connectors are identical on both ends of the Spectre hose, just make sure you have the two large ends of the coupling facing each other. Once these are pushed in tightly they will not pull out easily. Also, you will notice in my pics that it leaves almost 3" of compressed hose next to the ABS plastic stock intake to compensate for any engine twisting for torque caused by hard acceleration or towing.
Now I added a stainless clamp to the end the original ABS plastic intake opening, and tightened it down just for piece of mind. However, I can say this ... I removed it twice (prior to the clamp addition) making the adjustments I wanted to the hose to get it through both fender holes and it was pretty hard to remove either end once pushed into the holes completely without the clamp, so the clamp is really not needed. Mainly I just wanted the plastic end to look cleaner.
As you can see from the pics below, I did not use any home depot or lowes downspouts etc, I used only the $19.99 Spectre hose and it took almost no time at all. Yes, you can do it a dollar or two cheaper, but this was one stop, one piece and very clean.
As for results, not exactly sure yet as I am waiting for my replacement Edge Evo to be returned from Edge, as my original one kept losing it's memory and having to have it's external memory re-flashed, so the good folks at edge are replacing it.
Here are a few pics and if I do say so myself it looks much cleaner.
I tried to add this to the original How To Thread, but was unable to. With that said I hope the administration and the rest of you good folks do not mind my me adding my version of this little mod to the forums.
