98 mark viii to 98' f150 motor swap
Hello everyone,
Im slap dab in the middle of swapping a 98 mark viii 4.6 32v intec and putting it into a 98 f150. The truck HAD a 4.6 triton w/auto trans. So now Ive got both motors and transs out, and I know I will need the ECU from the mk. What other wiring will I need to take? Im using the trans that was in the f150and the mk motor. Anybody done this before? What other roadblocks will I encounter?
Any advice will help.
thanks
Im slap dab in the middle of swapping a 98 mark viii 4.6 32v intec and putting it into a 98 f150. The truck HAD a 4.6 triton w/auto trans. So now Ive got both motors and transs out, and I know I will need the ECU from the mk. What other wiring will I need to take? Im using the trans that was in the f150and the mk motor. Anybody done this before? What other roadblocks will I encounter?
Any advice will help.
thanks
Senior Member
Joined: Apr 2004
Posts: 13,679
Likes: 84
From: missing Texas...
you only need the engine harness, I am unsure why everyone is so dead set on swapping ECM's when they don't need to and it only brings on other issues when swapped...
you need to pay attention to the torque converters / flexplate interchangability as the car converter won't be happy in the truck and the truck flexplate might not bolt onto the 32 valve motor
you need to pay attention to the torque converters / flexplate interchangability as the car converter won't be happy in the truck and the truck flexplate might not bolt onto the 32 valve motor
Senior Member
Joined: Jan 2002
Posts: 5,994
Likes: 221
From: Wilmington,NC
you only need the engine harness, I am unsure why everyone is so dead set on swapping ECM's when they don't need to and it only brings on other issues when swapped...
you need to pay attention to the torque converters / flexplate interchangability as the car converter won't be happy in the truck and the truck flexplate might not bolt onto the 32 valve motor
you need to pay attention to the torque converters / flexplate interchangability as the car converter won't be happy in the truck and the truck flexplate might not bolt onto the 32 valve motor
I owned a 95 Mark VIII for 9 years and I loved that car!
Technical Article Contributor
Joined: Oct 2005
Posts: 25,641
Likes: 19
From: MI
I don't no about that, - manipulating the original PCM would be choice. Unless for some reason,- it can't be ? I can't think of any. Using the Mark comp COULD cause a lot of other issues that are PCM managed. Personally, I'd confirm with the tuner to be absolutely sure. Uknow, -what's easier for him.
Trending Topics
Senior Member
Joined: Apr 2004
Posts: 13,679
Likes: 84
From: missing Texas...
if it's not, then get a vacuum controlled box and be done with it
Thread Starter
|
Member
Joined: Nov 2012
Posts: 22
Likes: 0
From: St. Augustine, Fl.
tarajerame, I was under the impression a 16valve ECU would not control a 32valve engine. Am I mistaken?
Also the transmissions/flex plates/converters will all work in my application, good looking out on that though, its one of the first things I checked.
Also the transmissions/flex plates/converters will all work in my application, good looking out on that though, its one of the first things I checked.
Last edited by imabeast; Nov 12, 2012 at 12:13 PM.
Technical Article Contributor
Joined: Oct 2005
Posts: 25,641
Likes: 19
From: MI
; target=_blank><img src=http://pic.photobucket.com/share/icons/embed/btn_geturs.gif style=border:none; /></a><a href=http://s1359.beta.photobucket.com/user/imabeast904/library/ target=_blank><img src=http://pic.photobucket.com/share/icons/embed/btn_viewall.gif style=border:none; alt=imabeast904'salbum on Photobucket /></a></div>){kind=icon}

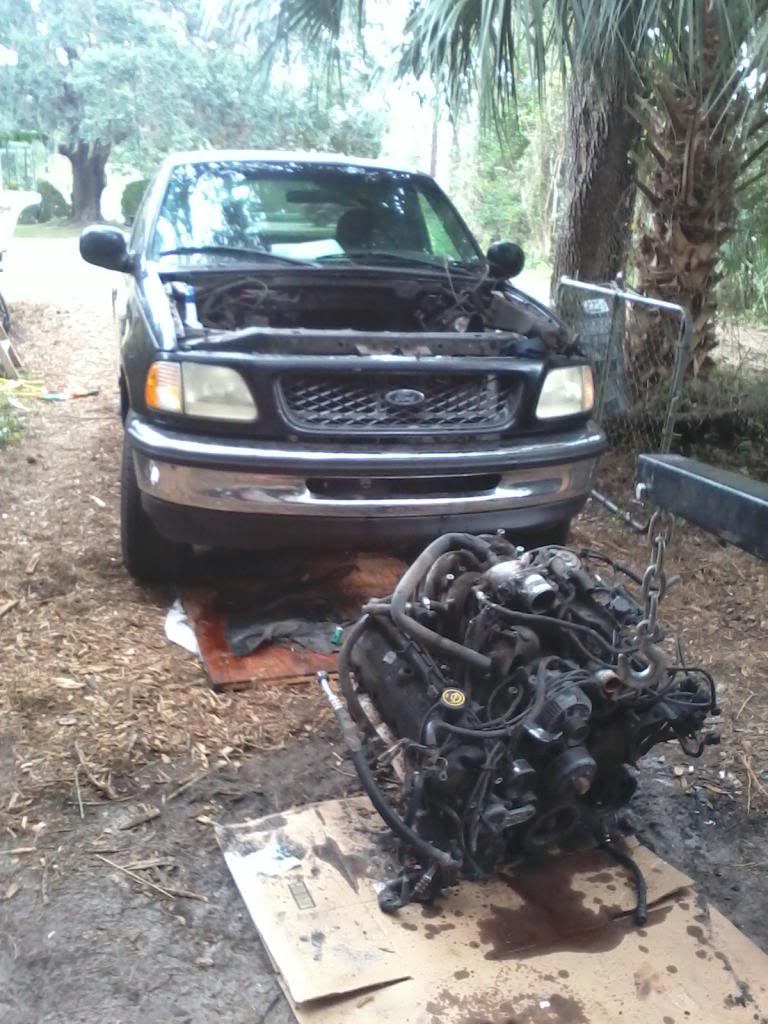

[IMG]<a href="http://s1359.beta.photobucket.com/user/imabeast904/library/" target="_blank"><img src="http://i1359.photobucket.com/albums/q786/imabeast904/IMG_20121017_143824.jpg" border="0" alt="Photobucket"/></a>[/IMG]

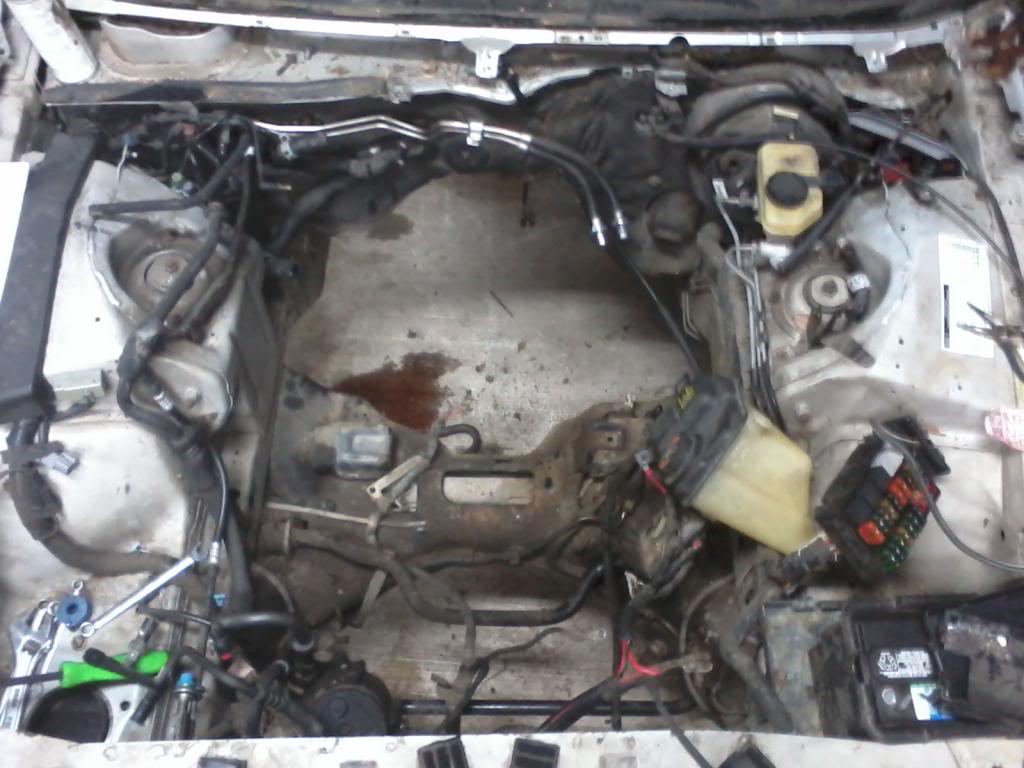

[IMG]<a href="http://s1359.beta.photobucket.com/user/imabeast904/library/" target="_blank"><img src="http://i1359.photobucket.com/albums/q786/imabeast904/IMG_20121101_221354.jpg" border="0" alt="Photobucket"/></a>[/IMG]

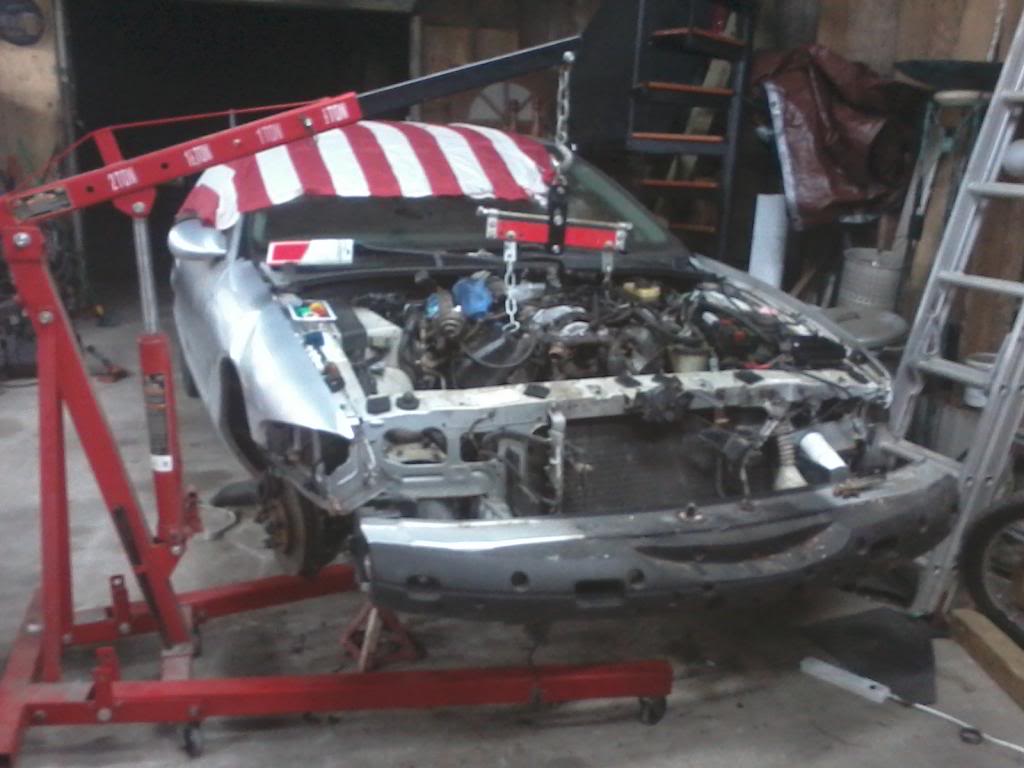

[IMG]<a href="http://s1359.beta.photobucket.com/user/imabeast904/library/" target="_blank"><img src="http://i1359.photobucket.com/albums/q786/imabeast904/IMG_20121101_210511.jpg" border="0" alt="Photobucket"/></a>[/IMG]

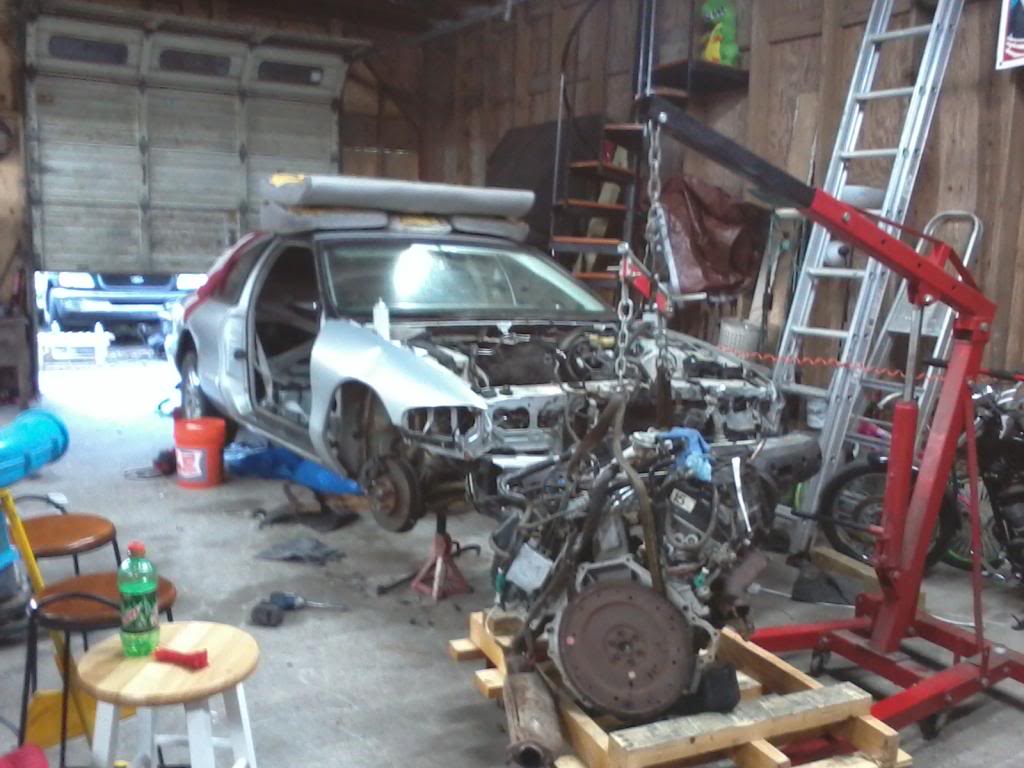

[IMG]<a href="http://s1359.beta.photobucket.com/user/imabeast904/library/" target="_blank"><img src="http://i1359.photobucket.com/albums/q786/imabeast904/IMG_20121103_174249.jpg" border="0" alt="Photobucket"/></a>[/IMG]
(If that worked...)
Yea, it worked.
_________________
Are you this funny on purpose?
Shoot, I can't recall laughing at 4am before...- ever!
Thanks man
Thread Starter
|
Member
Joined: Nov 2012
Posts: 22
Likes: 0
From: St. Augustine, Fl.
Can't tell whats so funny? care to elaborate?
