Okay, before I begin explaining how and what I did to convert my off road lights to HID, please note that neither F150online nor I are responsible for your actions if you'd like to attempt coping what I did.


So, last week I picked up the HIDs I'll be needing to convert my winch ready bumper lights, (refer to https://www.f150online.com/forums/ge...want-xmas.html )
With the assistance of my friend George, AKA UnleashedFord I was able to purchase 3 HID kits for only $35 a pair; thanks again George for letting me use you business account.

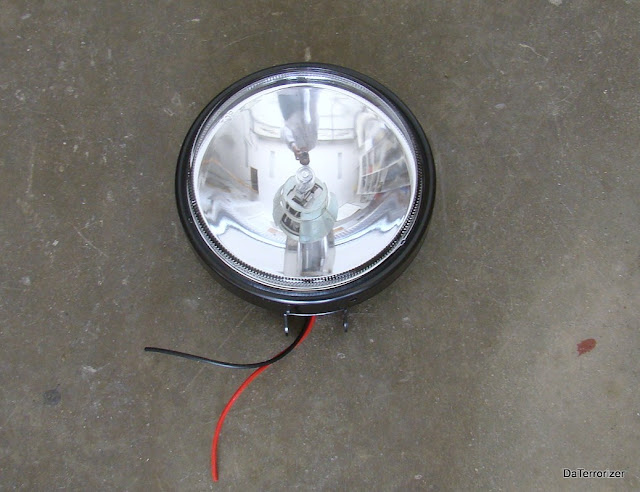

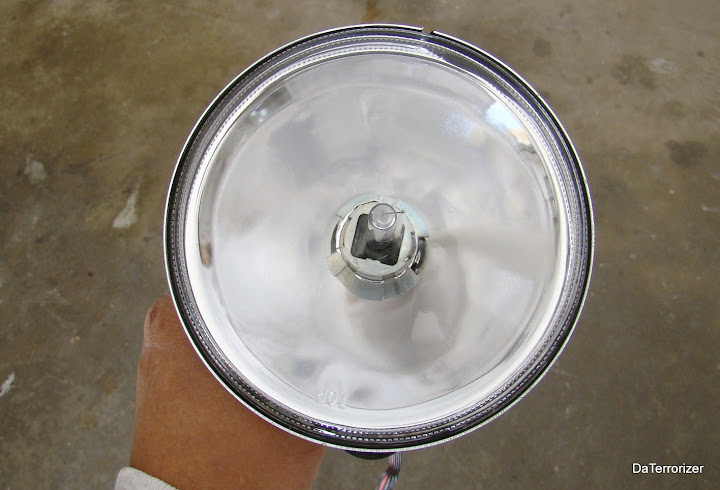

Halogen bulbs



Open it

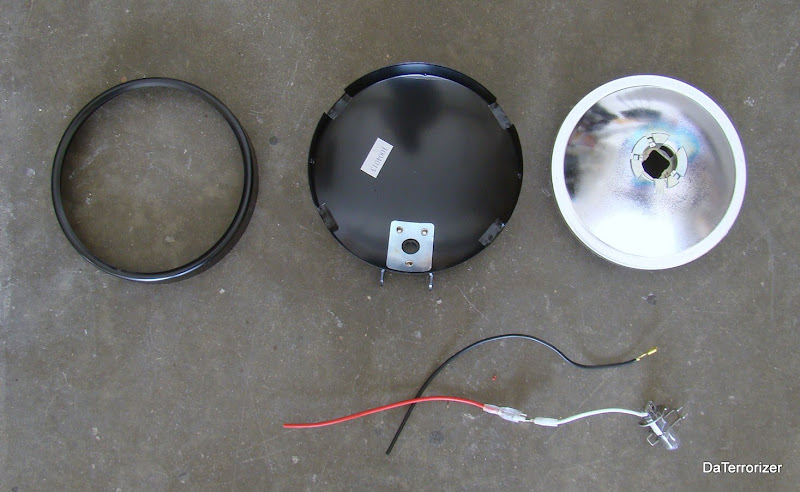

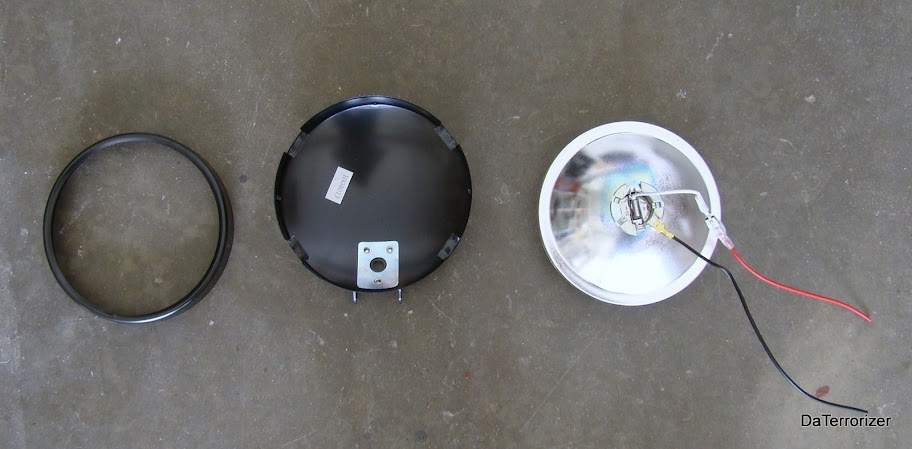

Take the bulb and wires apart

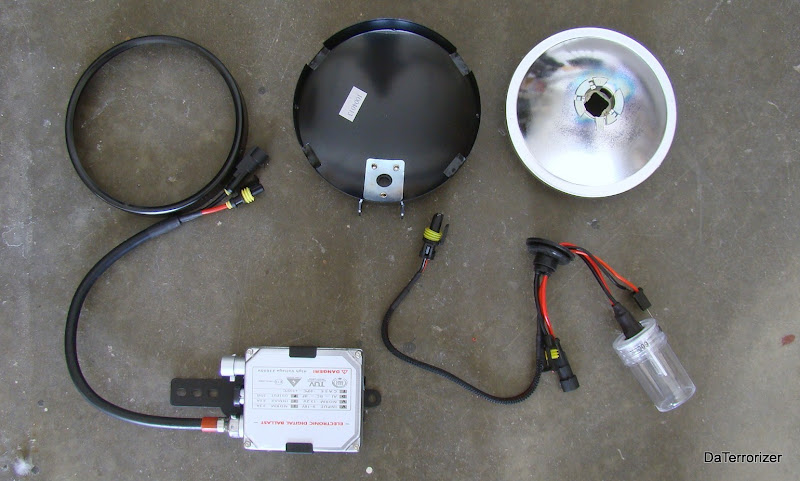

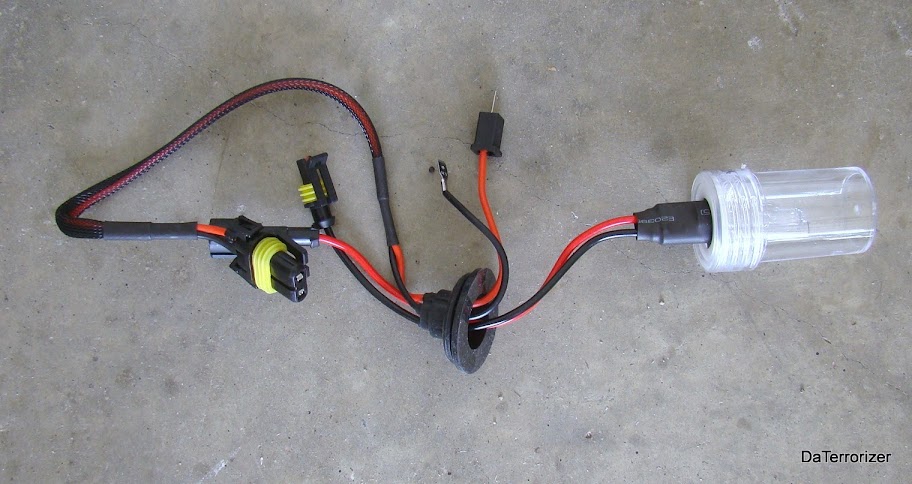

Get your HID ready

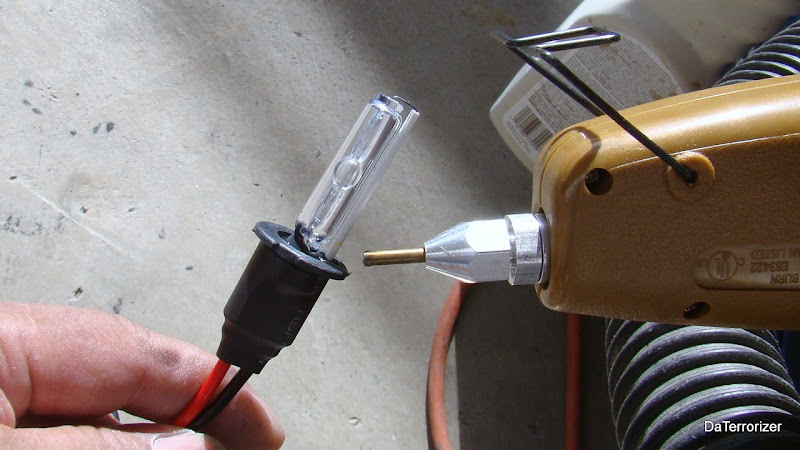

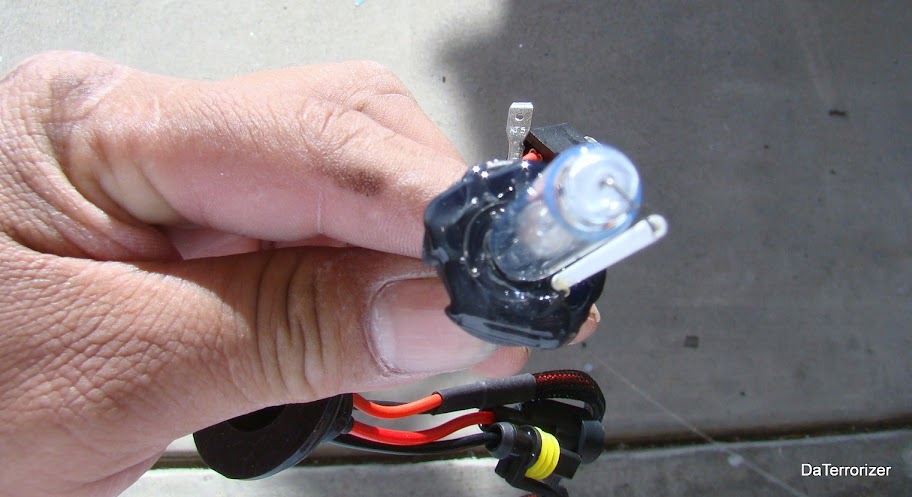

The clip that holds the bulb in place was too small to secure the HID bulb, so I hot glued it

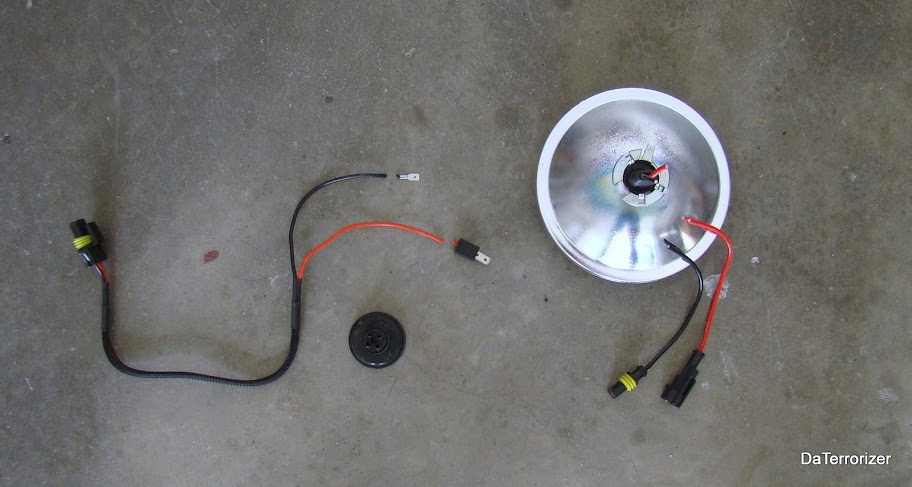

Clip the ends of the wires that go to the battery, cut the wires from the HID bulb and remove wires off rubber socket.

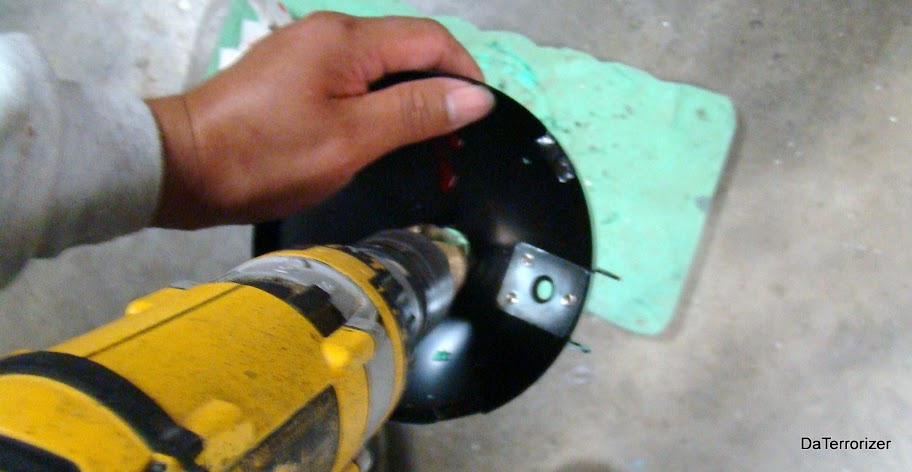

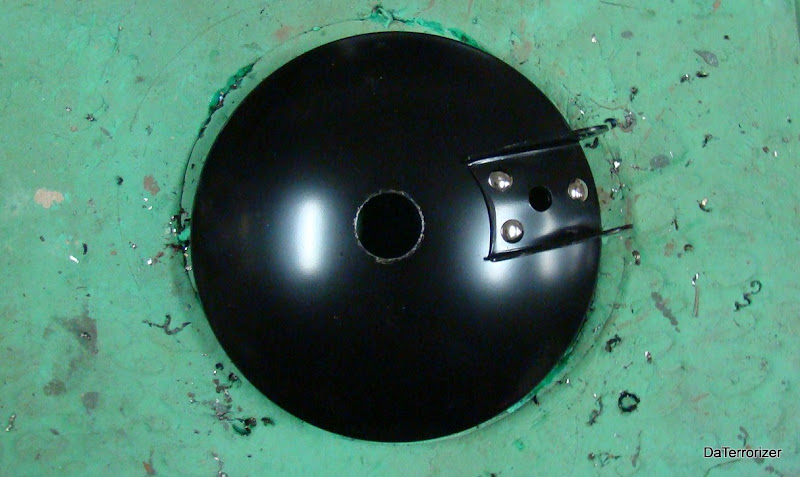

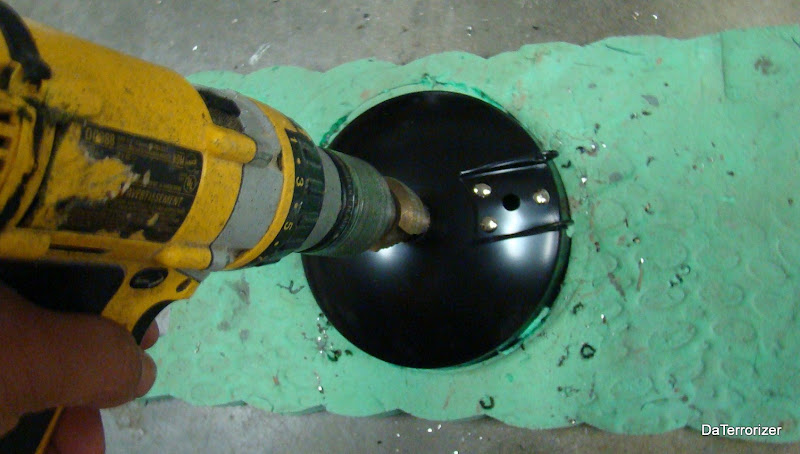

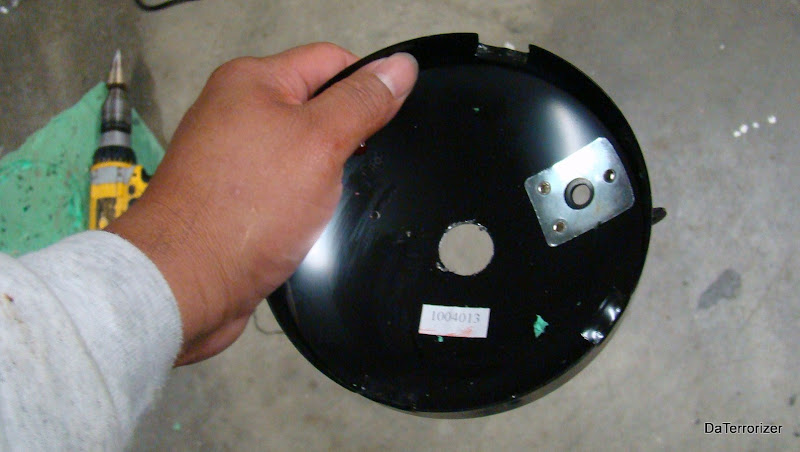

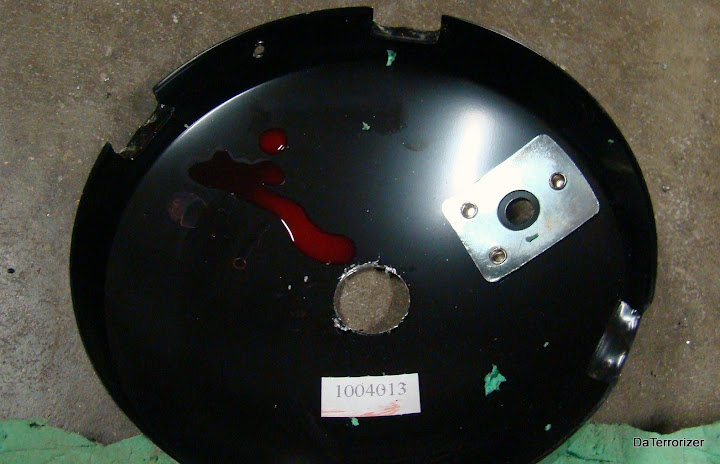

Perforate a quarter size hole on the back of the light housing

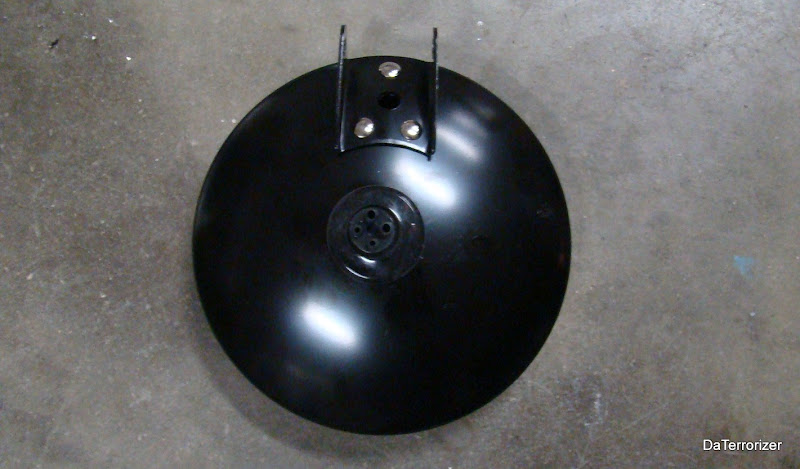

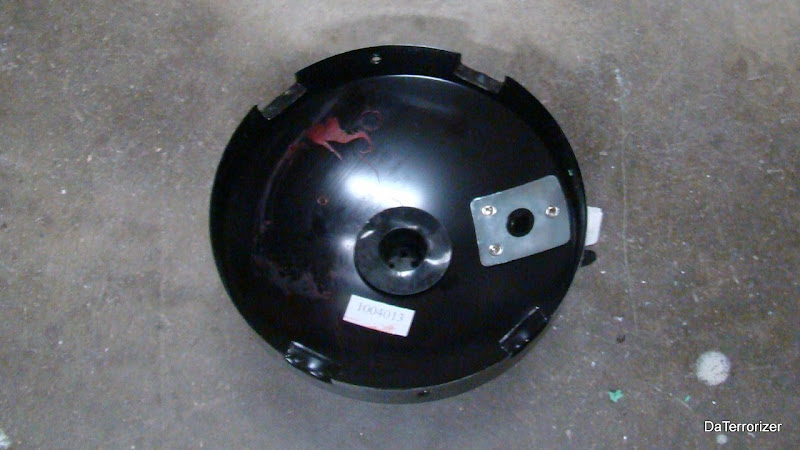

Now take the rubber socket and insert in the hole.

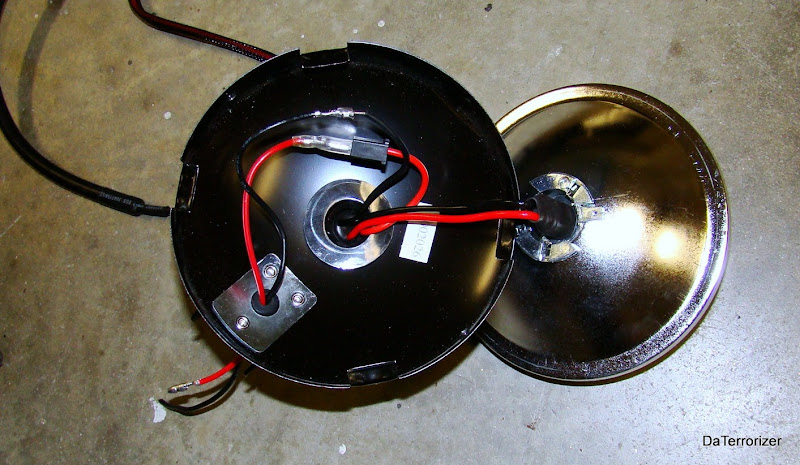

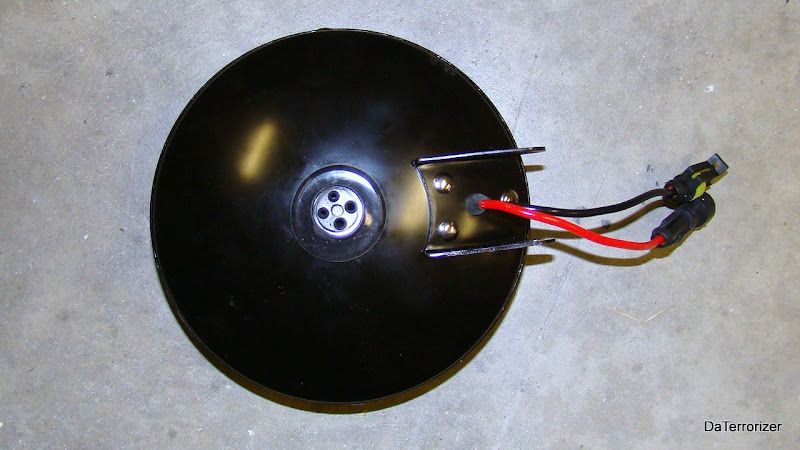

Now feed the ballast wire where the original wires were before.

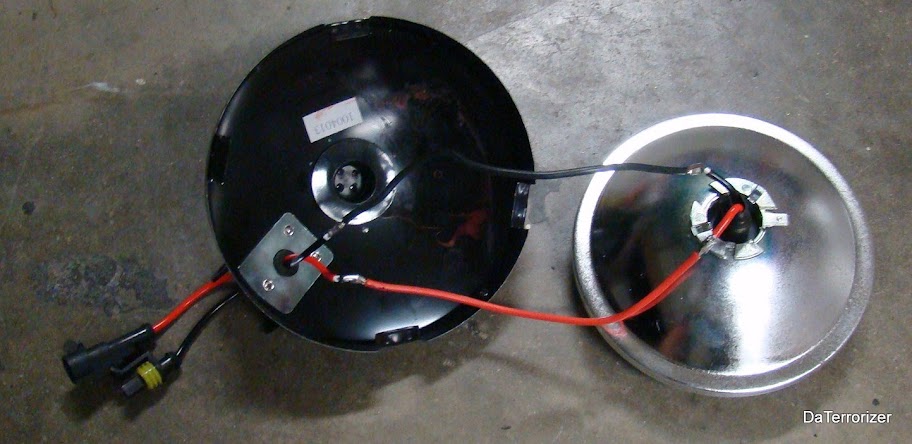

I then soldered an extension to bridged the 2 wires together and have enough play.

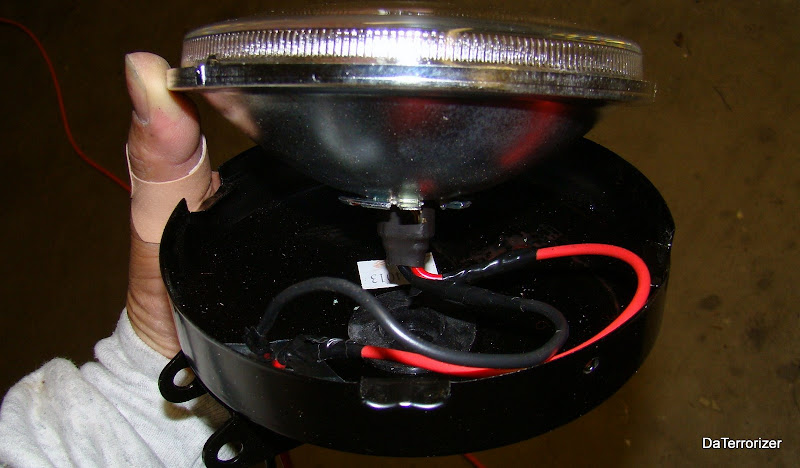

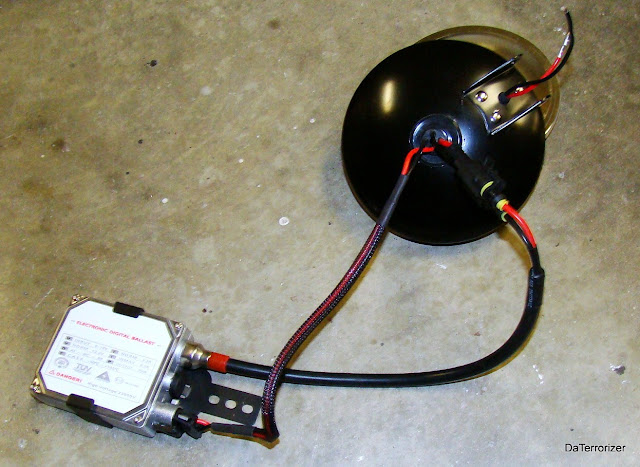

Now when the bulb's housing is installed the back of the HID bulb will have enough room to set in nicely.

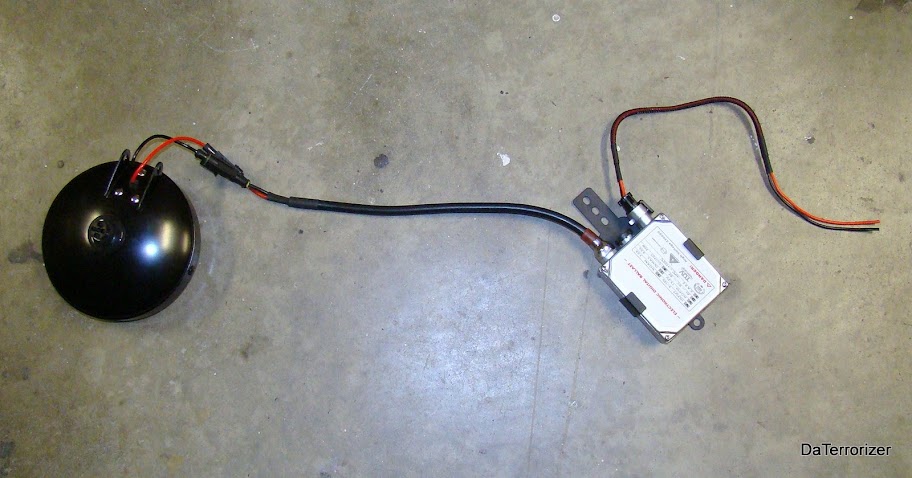

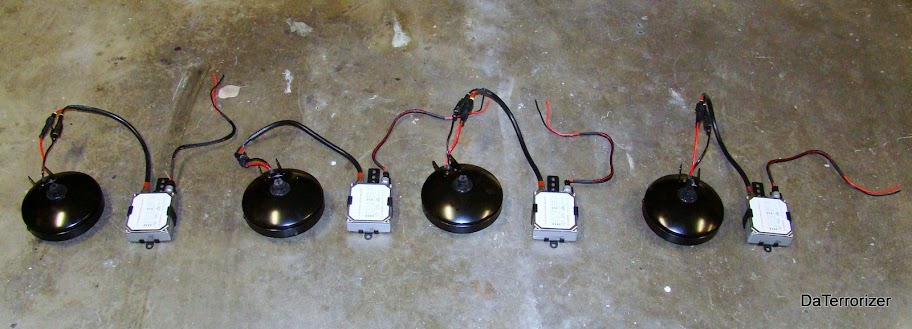

And you're ready to install complete your installation.



The easy way to install it would be to just feed the bulb including wires and rubber socket through the back of the light housing after it's been perforated.



And you done but, the back of the HID bulb will be crowded amounts the 4 wires coming in through the rubber socket.



But as some of you already know I love complicating my life cause I love challenges so I did it the complicated way cause it has a cleaner look.



^^ wow thats sexy.


mounted pics? output shots?



2 things never ever to do if you're brave enough to attempt this type of installation.

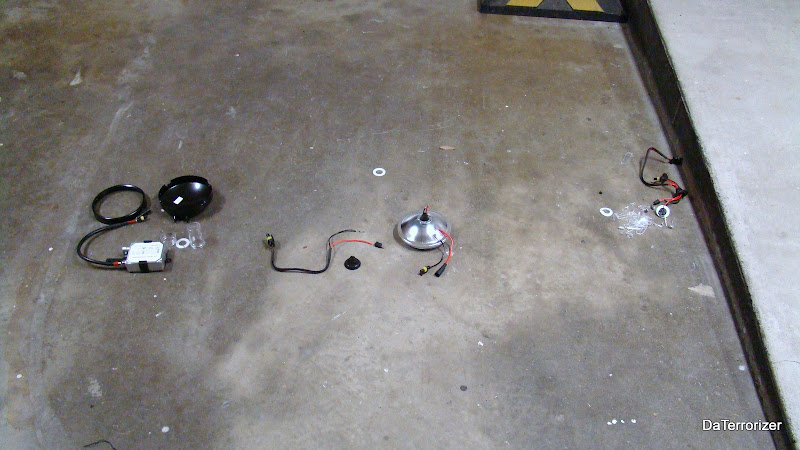

First, NEVER EVER, NEVER NEVER NEVER,......leave your stuff laying on the garage floor while you go to home depot and fetch materials.

Cause you'll probably come home and find your wife came home earlier than anticipated and parked the expedition in the garage as she always does

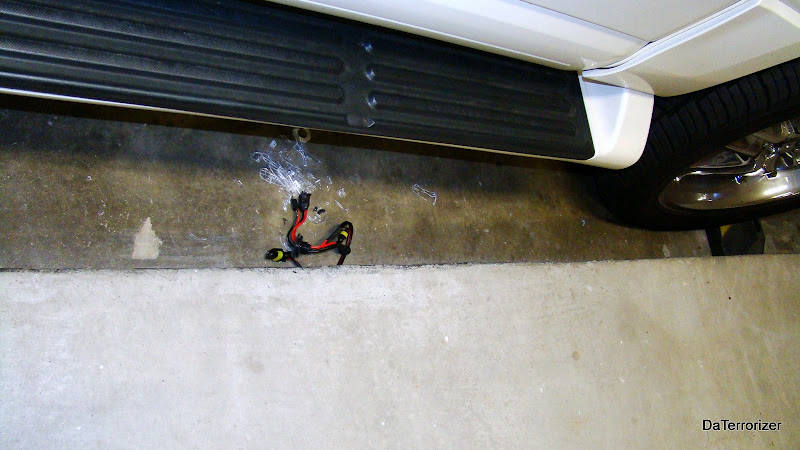

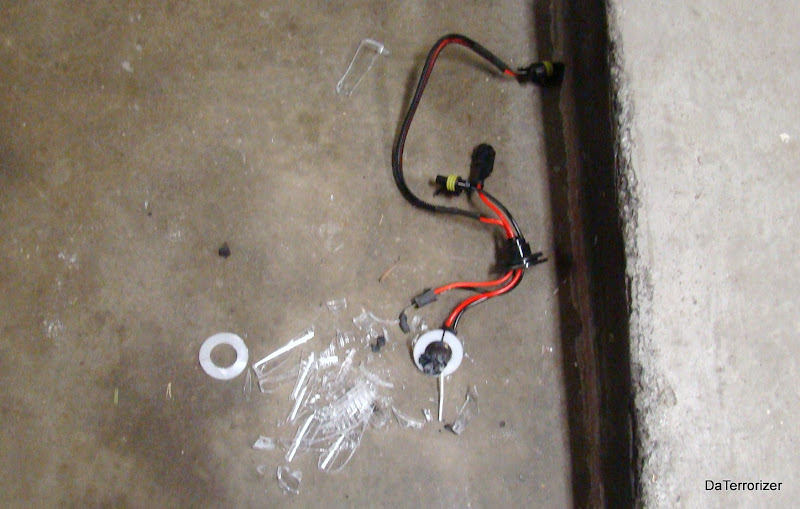

and you'll find this VVVV
