How To: Intermittent Digital Odometer Repair 99-03

Well since removing the cluster has already been well documented on this site we will pick up where Raptor left off, and repair the odometer display, intermittent inoperative concern.
How to remove dash pieces in Raptor's write up: https://www.f150online.com/forums/ar...r-97-03-a.html

Technically this write up has been done before but i have some larger pictures and more information (old link from 2003) https://www.f150online.com/forums/el...er-repair.html



Work was performed on a 1999 F150 but should be similar on all 1999-2003s

Anyways, start by removing the cluster

Be very careful not to break the little black clips that hold the gear indicator to the bottom of the cluster. Spread the clips out forward and backwords, and slide the indicator down.

Name:  DSC09237.jpg
Views: 2926
Size:  126.5 KB

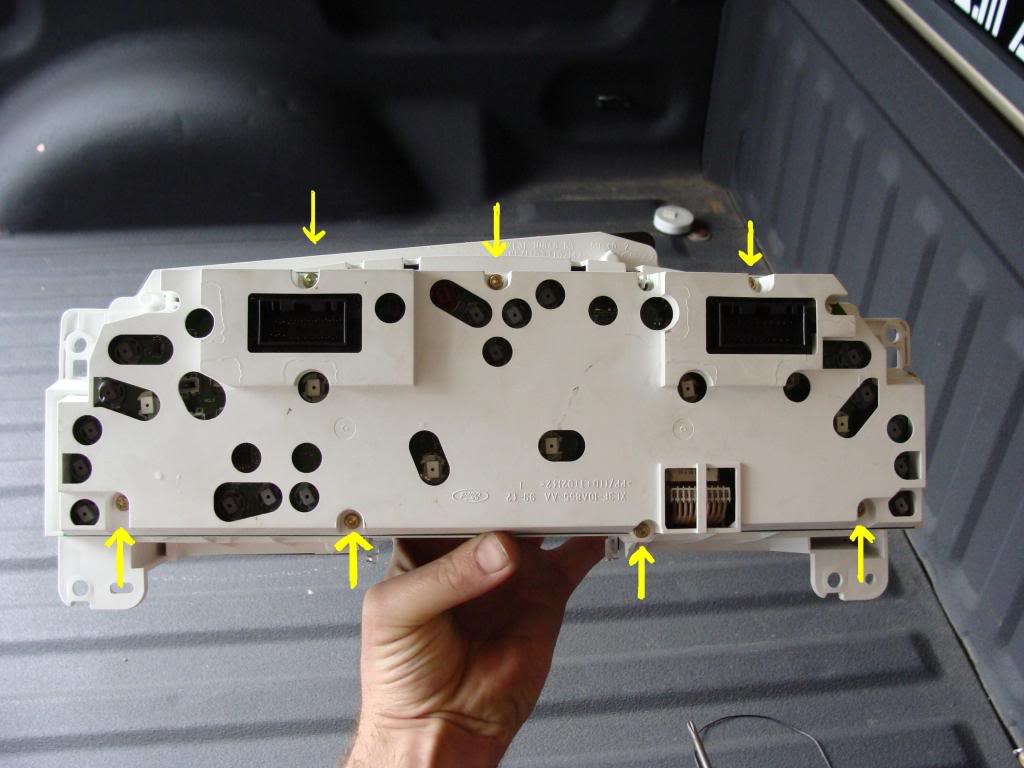

Next dissasemble the back of the cluster, taking out the screws (I believe they are T10 possibly a T15)
Name:  DSC09235-a.jpg
Views: 2536
Size:  93.5 KB

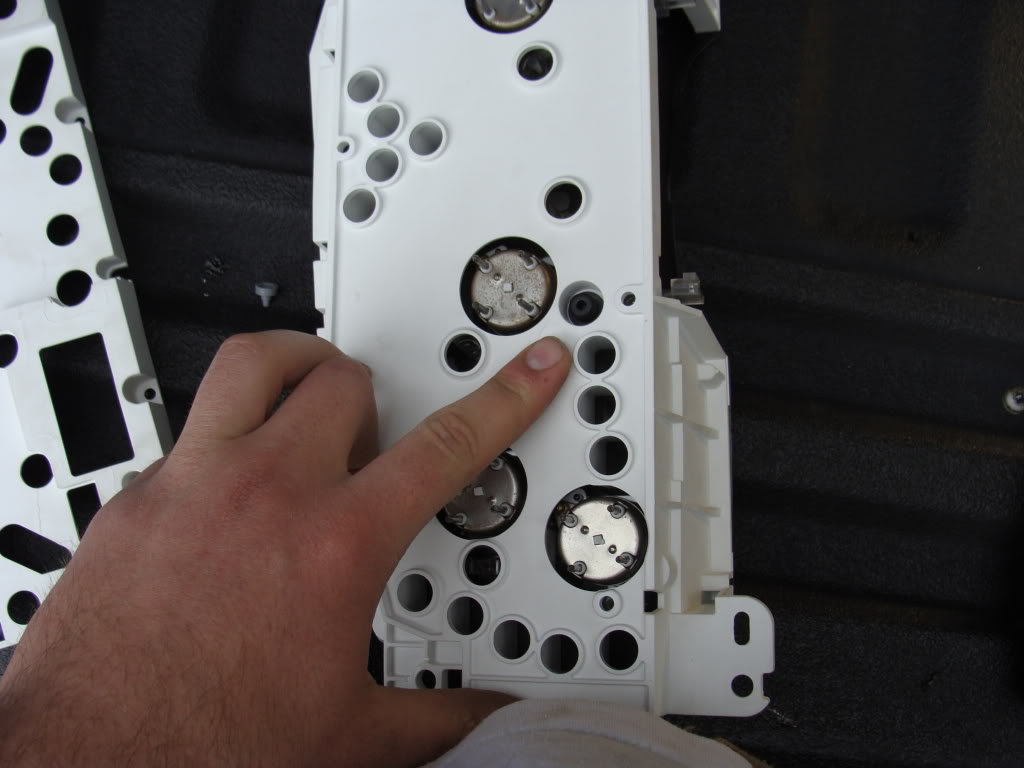

Take note of the trip odometer selection button's location
Name:  DSC09233.jpg
Views: 2453
Size:  90.8 KB

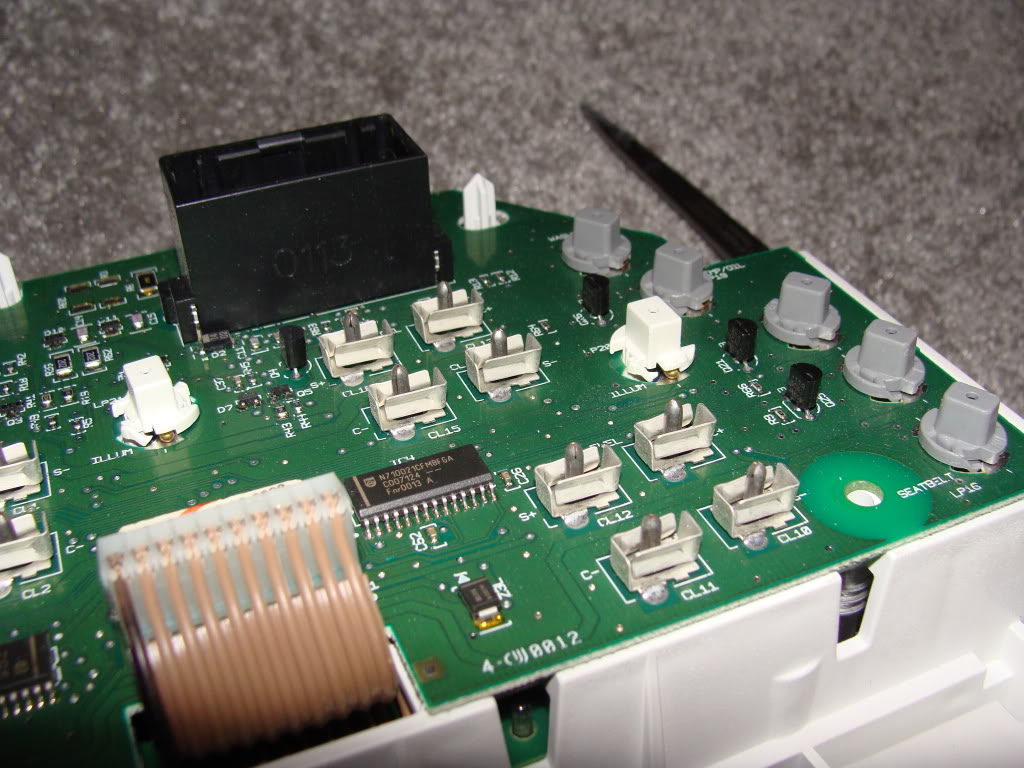

Once the back white support is off, carefully remove the odometer display connector from the back of the circuit board, it pulls straight off
Name:  DSC09164.jpg
Views: 2619
Size:  159.0 KB

Remove the main circuit board from the rest of the cluster

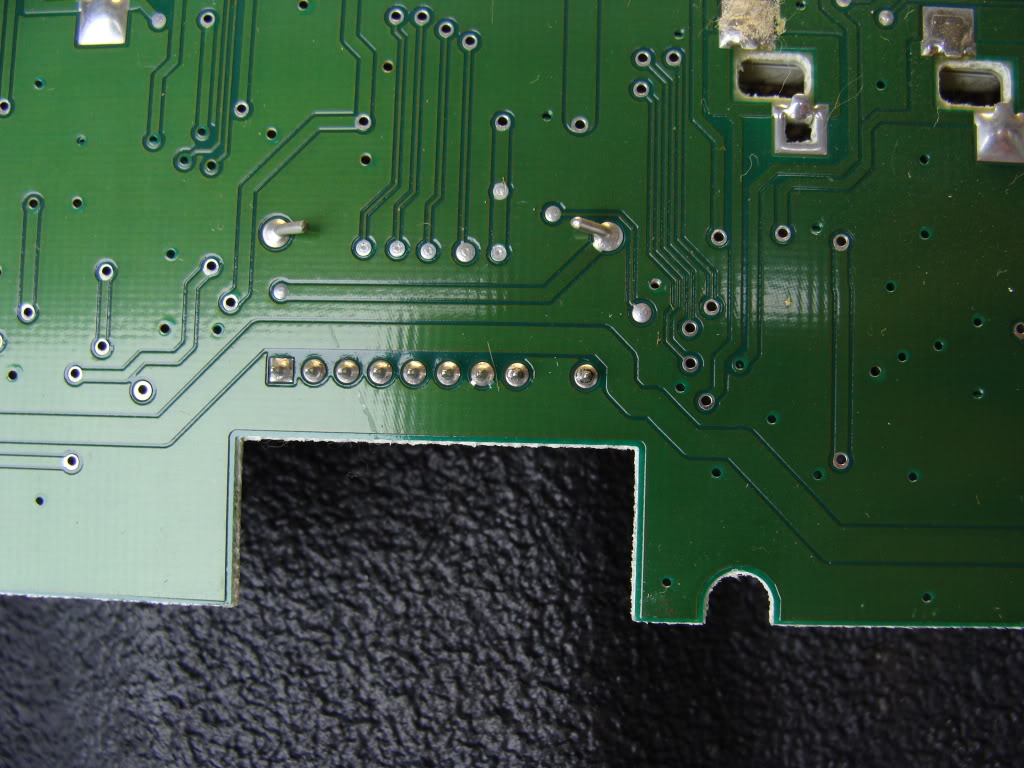

remember that display connector? Flip over the circuit board (gauge side up) and look at where the connector pins go through the board.

There is a row of 8 pins, then a space and then one pin by itself.
Name:  DSC09227.jpg
Views: 2403
Size:  143.1 KB

The pin that is by itself is the pin that will be repaired during this procedure.

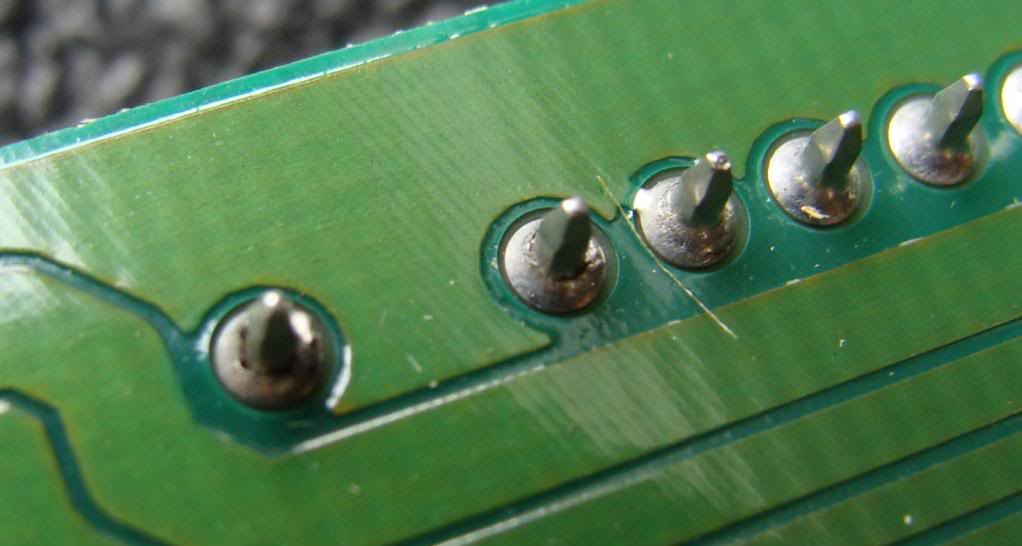

It is very hard to see with the naked eye, but you can see the dark areas around this pin where the solder has failed
Name:  pinbefore.jpg
Views: 2454
Size:  49.8 KB

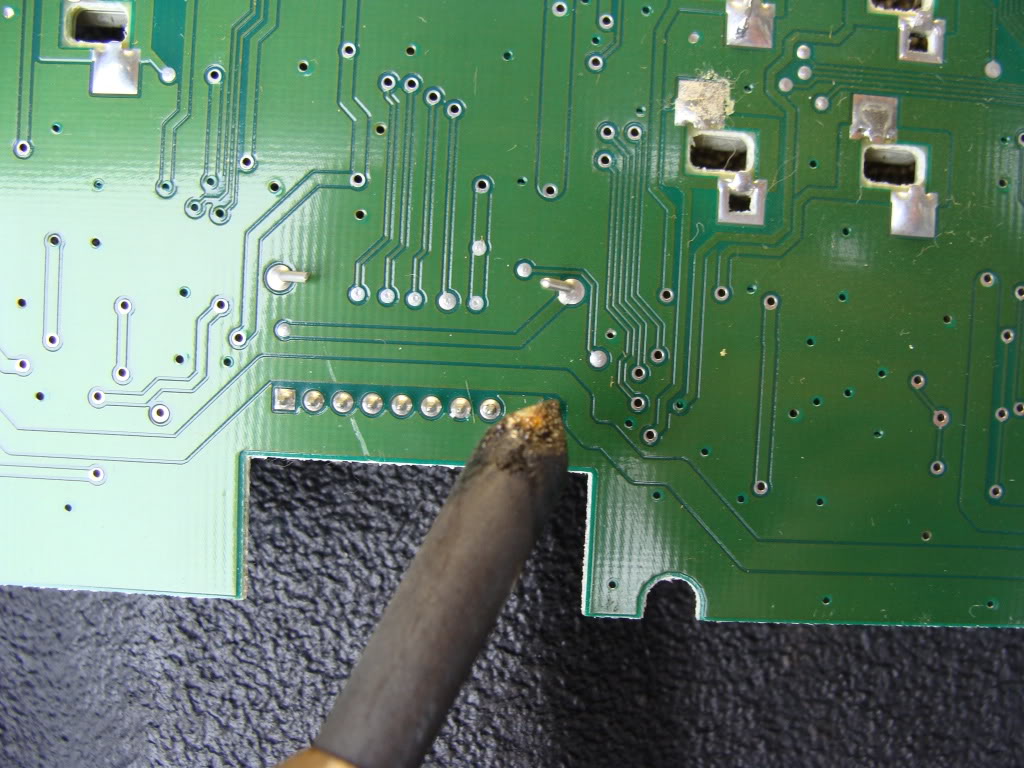

Carefully add solder that pin making sure not to over solder and cause a short in the circuit board.
Name:  DSC09228.jpg
Views: 2419
Size:  162.8 KB

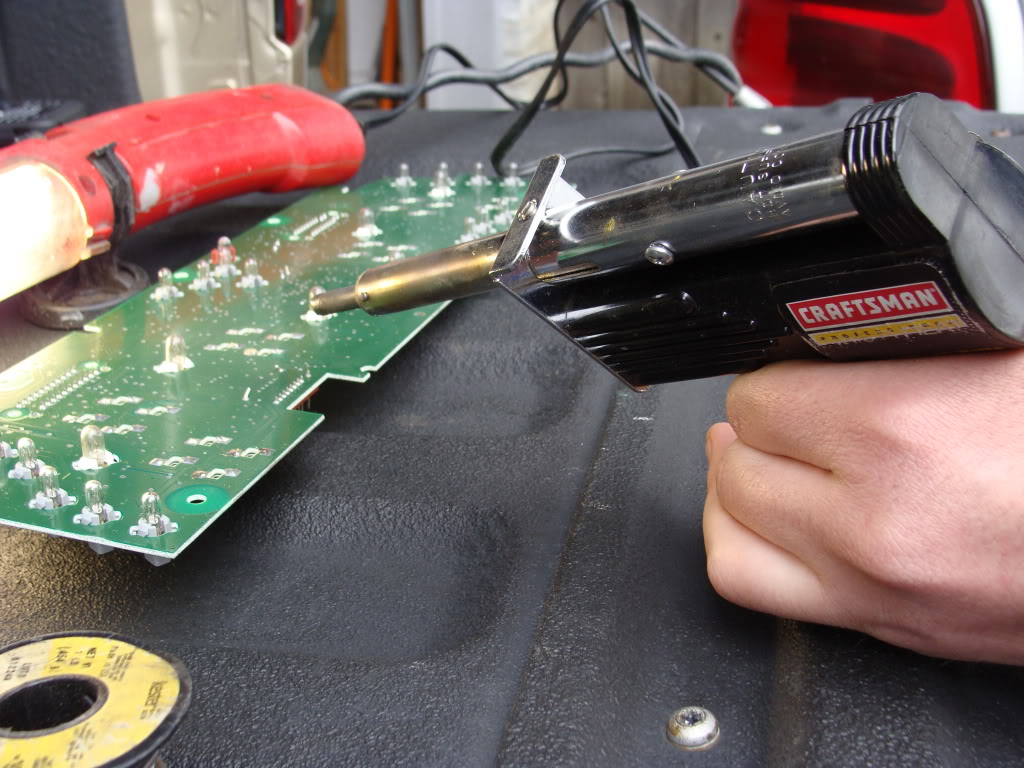

Name:  DSC09229.jpg
Views: 2408
Size:  156.0 KB

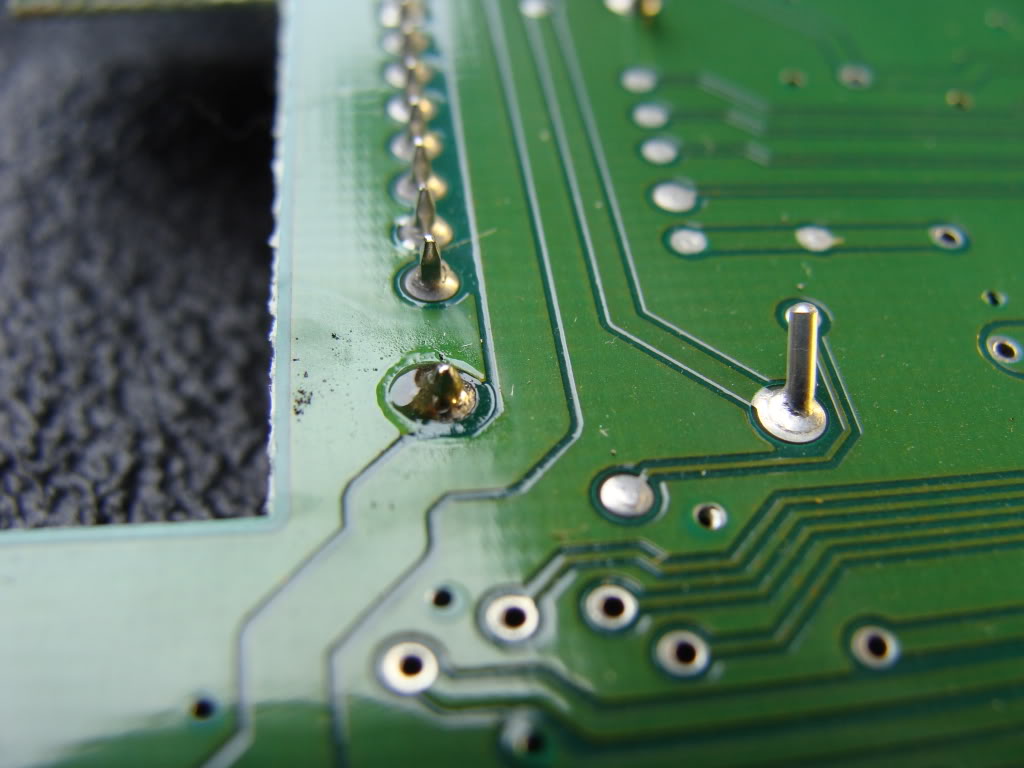

After soldering it should look like this:
Name:  DSC09231.jpg
Views: 2386
Size:  97.7 KB

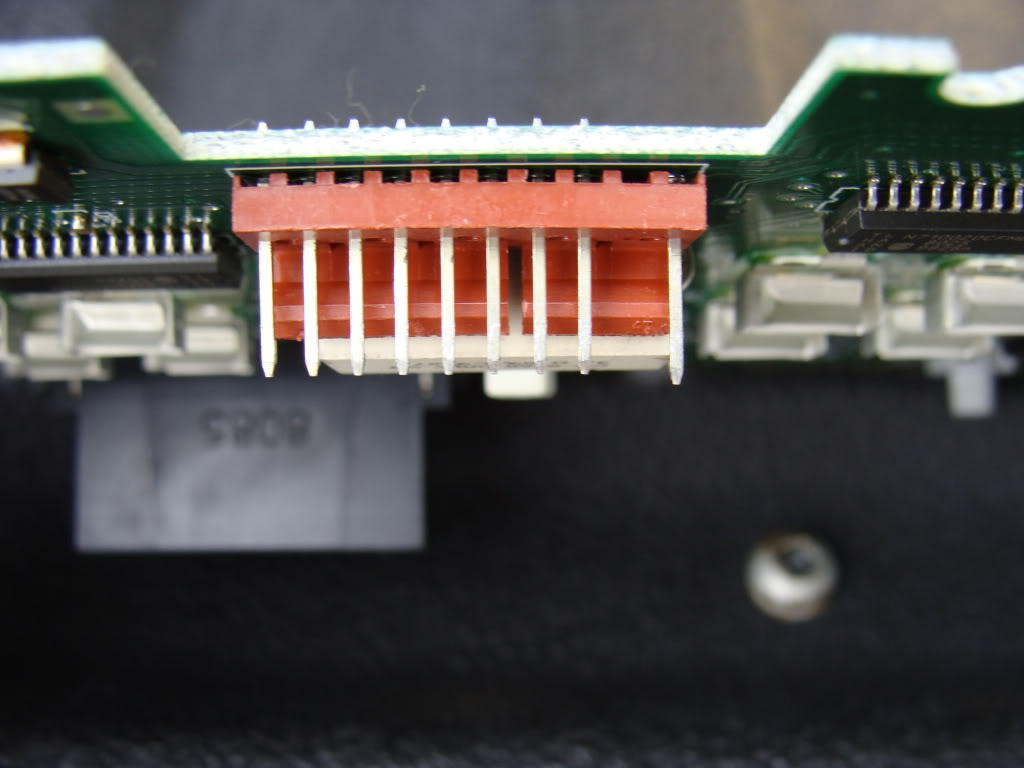

Be observant during the solder procedure. I was putting too much downward pressure on the pin as i heated it up, and i ended up pushing the pin through the board too far. This is easily reversible if you do this as well. Just reheat the solder and push the pin back into place, and align the length with the other pins.

Name:  DSC09232.jpg
Views: 2413
Size:  84.8 KB

Reassemble the back of the cluster and reinstall it into the vehicle. I would recommend plugging it in and testing it before you completely put the dash all back together.


I also would recommend taking the lens off of the cluster and clean the dust off of the inside of the face. Just remove the screws on the lens and clean it with a microfiber or non abrasive towel since it scratches very easily.
Name:  DSC09234-a.jpg
Views: 2928
Size:  100.4 KB


Good luck

Reply
Old Oct 23, 2011 | 01:25 AM
  #2
54regcab's Avatar
Senior Member
Joined: Jul 1999
Posts: 1,929
Likes: 1
From: Oklahoma City
Great writeup, a LOT cheaper than replacing the entire cluster for a bad solder joint.

Reply
Old Oct 29, 2013 | 01:09 PM
  #3
03Fx4JD's Avatar
Senior Member
Joined: Nov 2010
Posts: 1,083
Likes: 0
From: Bama
Finally got around to doing this this weekend, thanks for the write-up.

Reply
Old Jun 14, 2014 | 01:08 AM
  #4
Daffydavid's Avatar
Junior Member
Joined: May 2014
Posts: 3
Likes: 0
I followed your instructions and my odometer is working great now. My problem is that now my trip odometer selection won't work. Looking at the picture I can see the grey plastic/rubber piece that goes on the end of it but it is long gone. Does Ford sell this piece can I use something else instead? Thanks.


Last edited by Daffydavid; Jun 14, 2014 at 01:21 AM. Reason: updated
Reply
Old Oct 18, 2014 | 04:45 PM
  #5
oldsalt's Avatar
Junior Member
Joined: Oct 2014
Posts: 2
Likes: 0
From: Cadillac, Mi
I replaced my complete cluster with a used one from my local salvage yard, tried to start my 2003 F150 before completely reassembling dash. Engine turns over normally but does not fire up. Did I do something wrong? there was a question on this forum about the coded key, could that be a problem?

Reply
Old Oct 19, 2014 | 12:48 AM
  #6
Patman's Avatar
Thread Starter
|
Global Moderator &
Senior Member
20 Year Member
Joined: Aug 2005
Posts: 21,337
Likes: 159
From: DFW
You would need to have the cluster programed to the truck.

The anti theft system (PATS) isn't compatible until its programmed to "know" your keys/ignition

Reply
Old Oct 20, 2014 | 06:49 PM
  #7
oldsalt's Avatar
Junior Member
Joined: Oct 2014
Posts: 2
Likes: 0
From: Cadillac, Mi
how does one program the (PATS)?

Reply
Old Oct 21, 2014 | 06:30 PM
  #8
Patman's Avatar
Thread Starter
|
Global Moderator &
Senior Member
20 Year Member
Joined: Aug 2005
Posts: 21,337
Likes: 159
From: DFW
Dealer only. Or some specialty locksmiths
