Project Dirtshark: Dixon Bros. F-150 Long-Arm Suspension Swap

Forum member transforms 2001 F-150 into a badass off-road beast. However, there is an odd, unexpected ending to this build story.

One of the key differences between off-road high performance vehicles and your average Ford F-150 pickup is the suspension setup. Most off-road racers have a wider track with far more suspension travel, and that is exactly what forum member fnnrNArnner74 had in mind when he began to build his 2001 F1-50. The goal was to transform his F150 into an off-road beast and he began the process by adding a Dixon Brothers long-arm front suspension setup with Fox shocks.

The Introduction

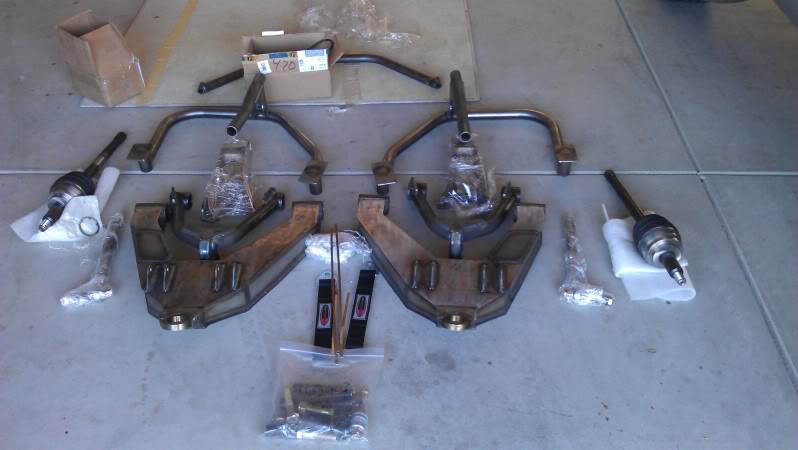

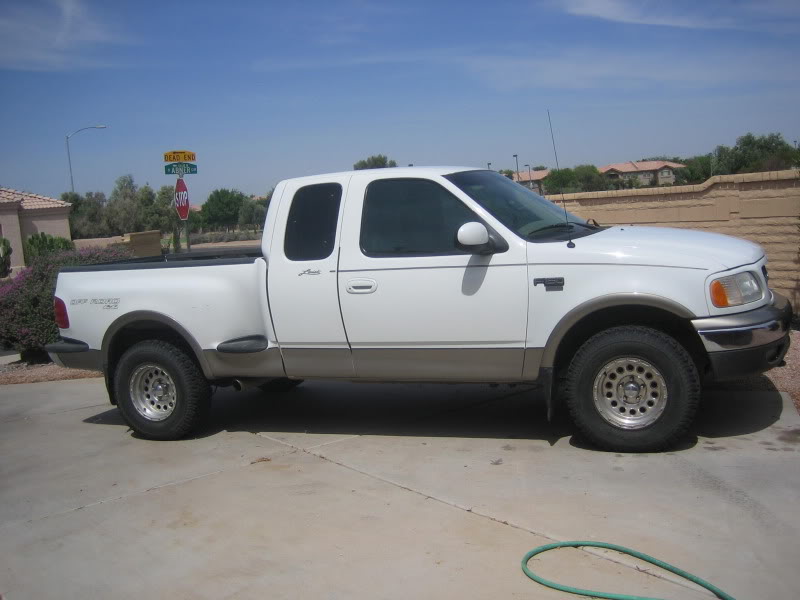

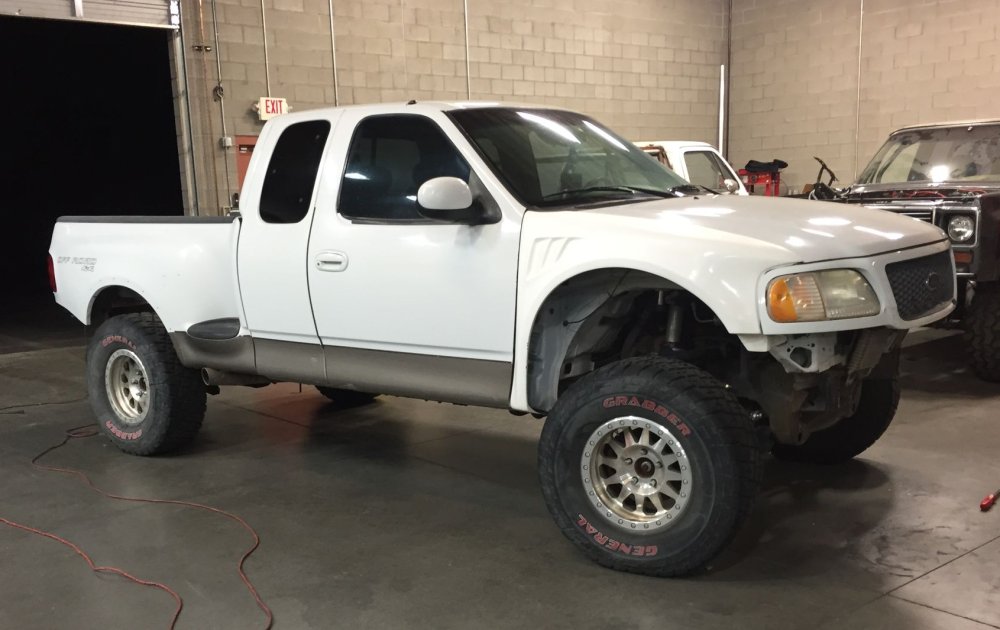

The build thread detailing this 2001 Ford F-150 project began with the OP showing the truck in its “before” form while explaining his goals and showing off some of the components purchased for the build.

“Thought I would make a little build thread on my truck. Took the DBR kit and made a little modification to it to accommodate my needs. There will be more to come, I want to try and fit a 3.0×10″ triple bypass in there somehow, and after that I’m going to link the truck after i figure out exactly how I’m going to go about it. Somewhere in between I would like to stuff a johnny lightning performance short block with a kenne bell supercharger to give her the get up and go I want. It should be a fun project and hopefully by the time it’s done I can enter in on truck of the month! If you’re ever in the Arizona desert keep your eyes peeled, DirtShark might just be lurking.”

The Long-Arm Install

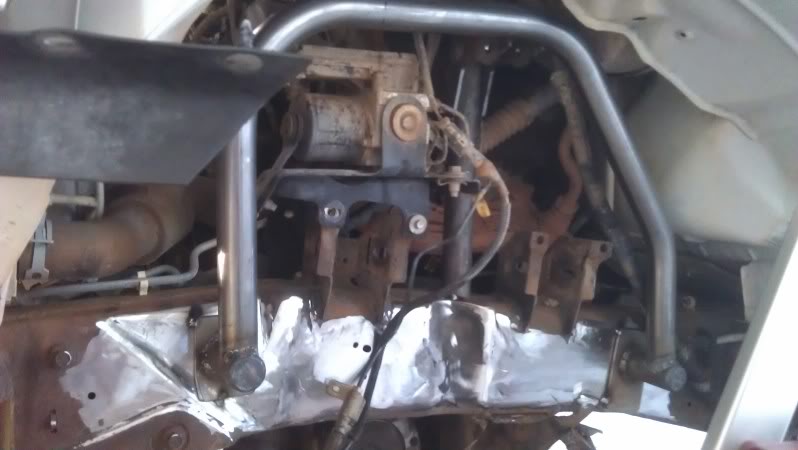

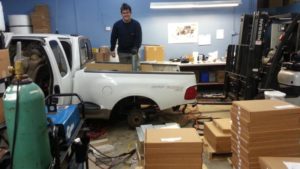

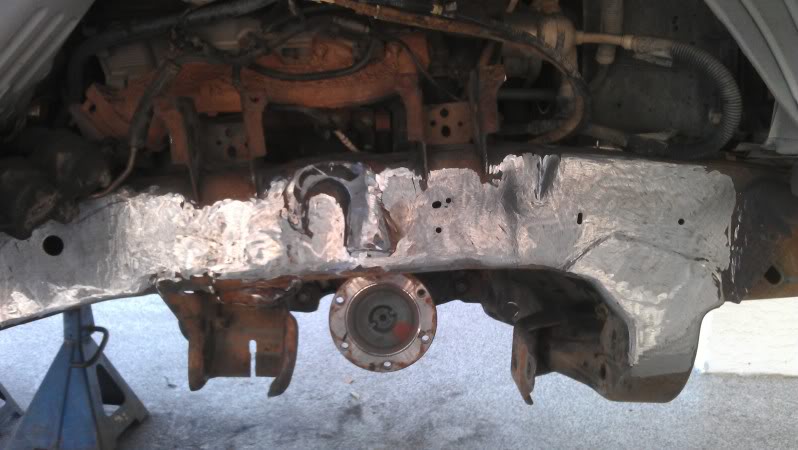

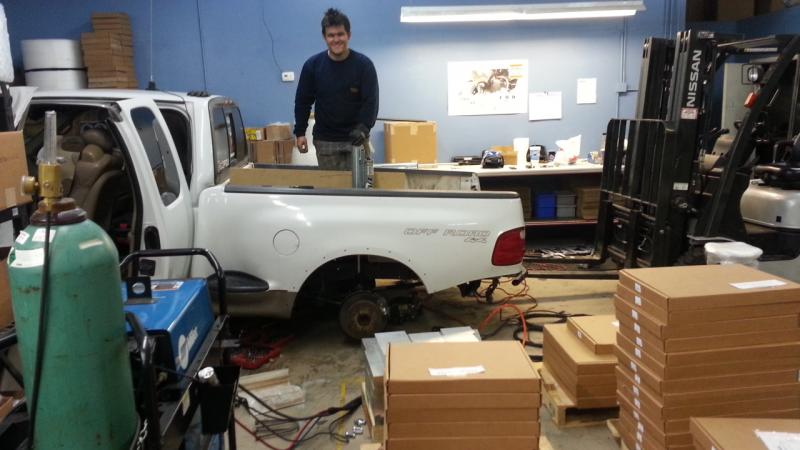

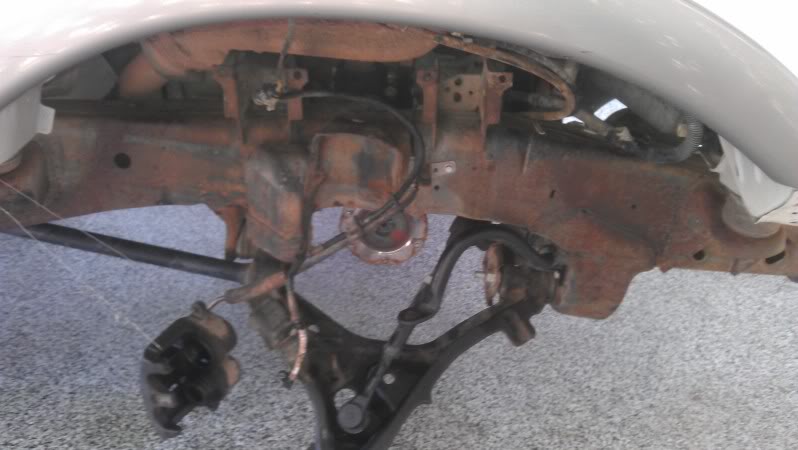

In addition to introducing the truck in its stock(ish) form and explaining the build, the OP included step-by-step images of the conversion from factory front suspension to the long-arm setup from Dixon Brothers. This included removing all of the factory bits, clearing a spot for the installation of the long-arm components, welding up the new tubular shock mounts and bolting up all of the pieces from the Dixon Brothers kit.

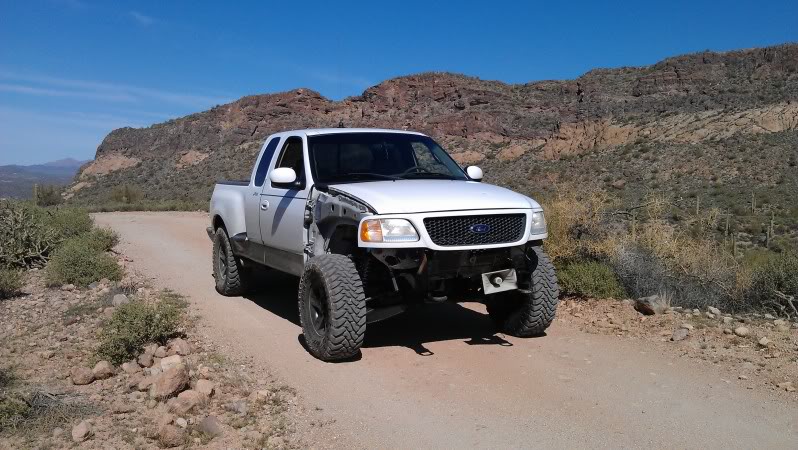

The key issue in adding any long-arm suspension package like this is that the factory body parts get in the way, so fnnrNArnner74 had to remove the front fenders and front bumper before hitting the road.

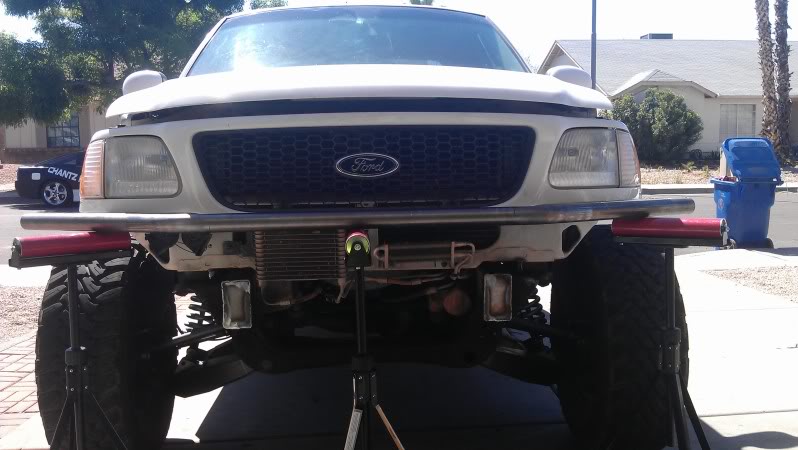

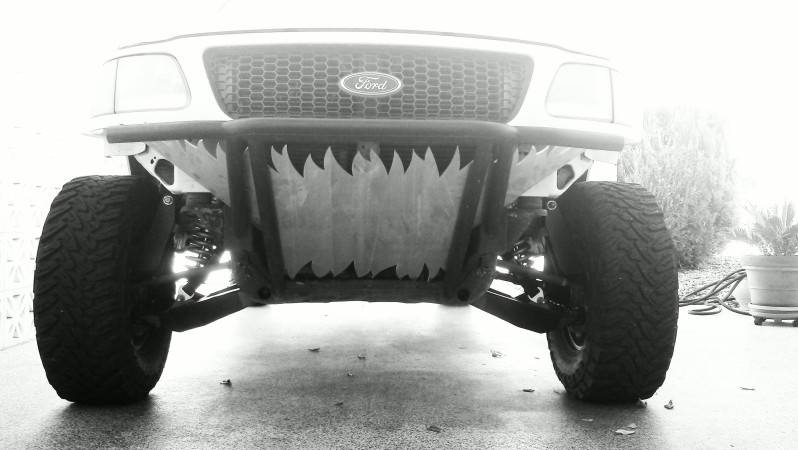

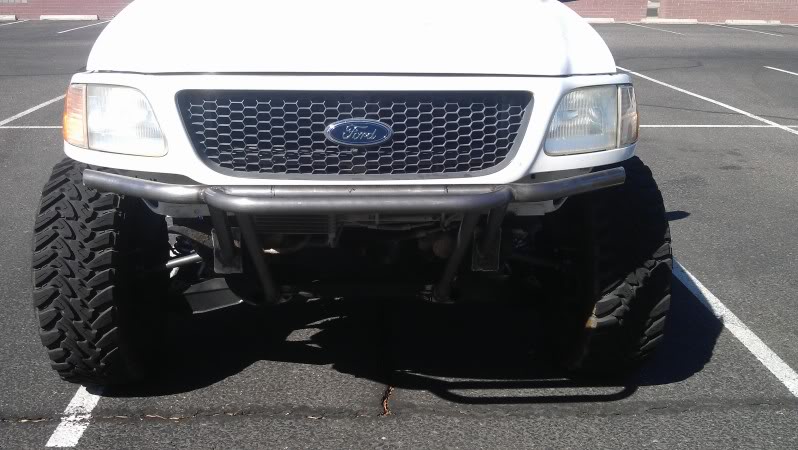

Once the suspension swap appeared to be finished up, the OP fabricated a new tubular front bumper that allowed plenty of space for wheel travel. That custom front bumper was finished off with a custom skid plate and a set of big, bright, off-road lights.

A New Body Look

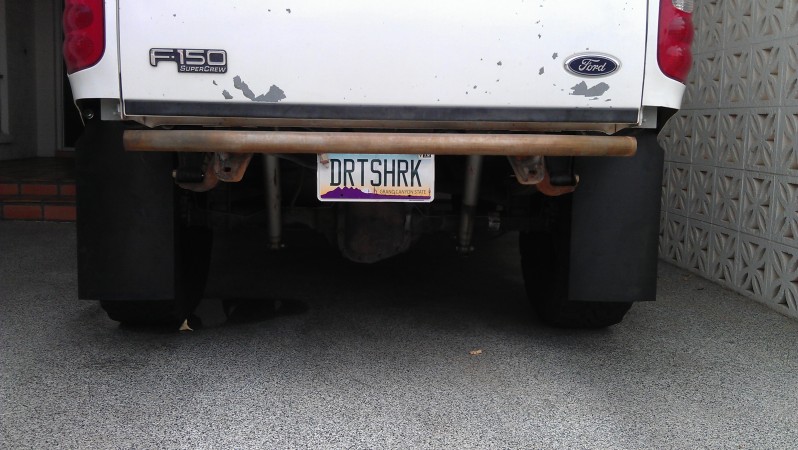

After spending a few months driving his 2001 F-150 around with no fenders, the OP got new fiberglass body panels that allow the wheels to move freely without hitting the body. When the new front fenders went on, he trimmed the area of the bedsides behind the rear wheels and removed the stock rear bumper, fabbing up a minimal tubular bumper to replace the factory design.

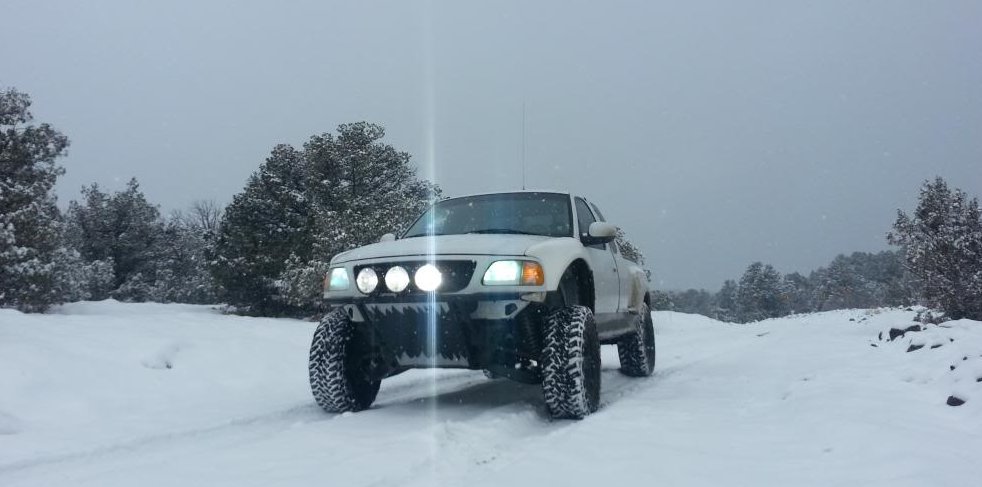

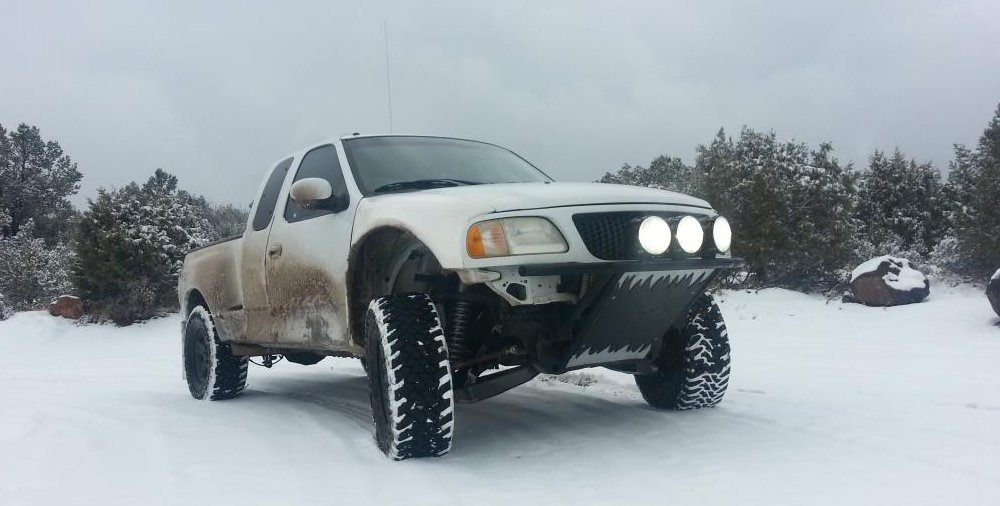

Once the body was finished, the OP spent time enjoying his long-arm F-150 in all sorts of off-road venues, from dirt to mud to snow. Along the way, the dealt with broken axles and an engine problem, but the truck proved to be the off-road beast that he had hoped. The only downside was the rear suspension setup, which he addressed almost a year after this project was first shared.

New Rear Suspension

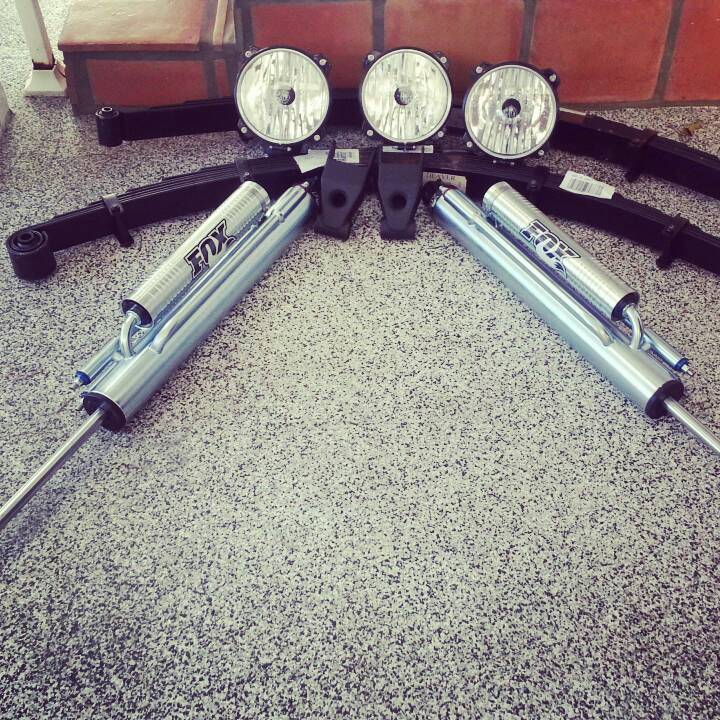

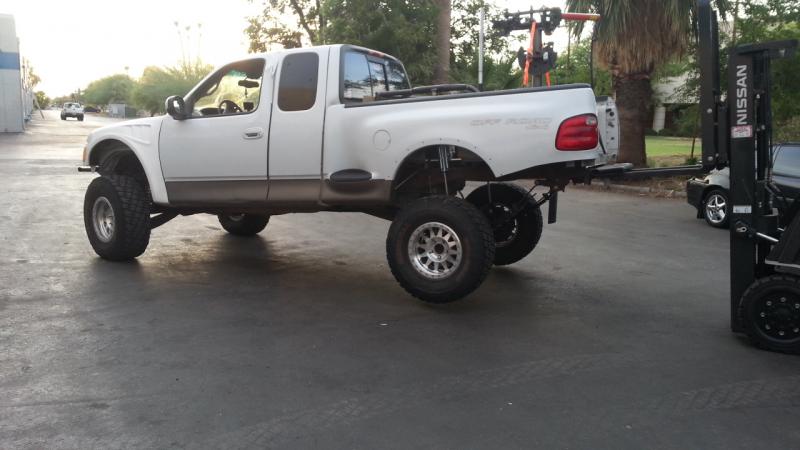

In order to get a proper rear suspension setup to match the front long-arm setup, the OP added new tubular braces with Fox high performance dampers extending from the axle up to the new mounts in the bed. Around this time, he also swapped to new wheels and tires, bolstering the prerunner race truck look.

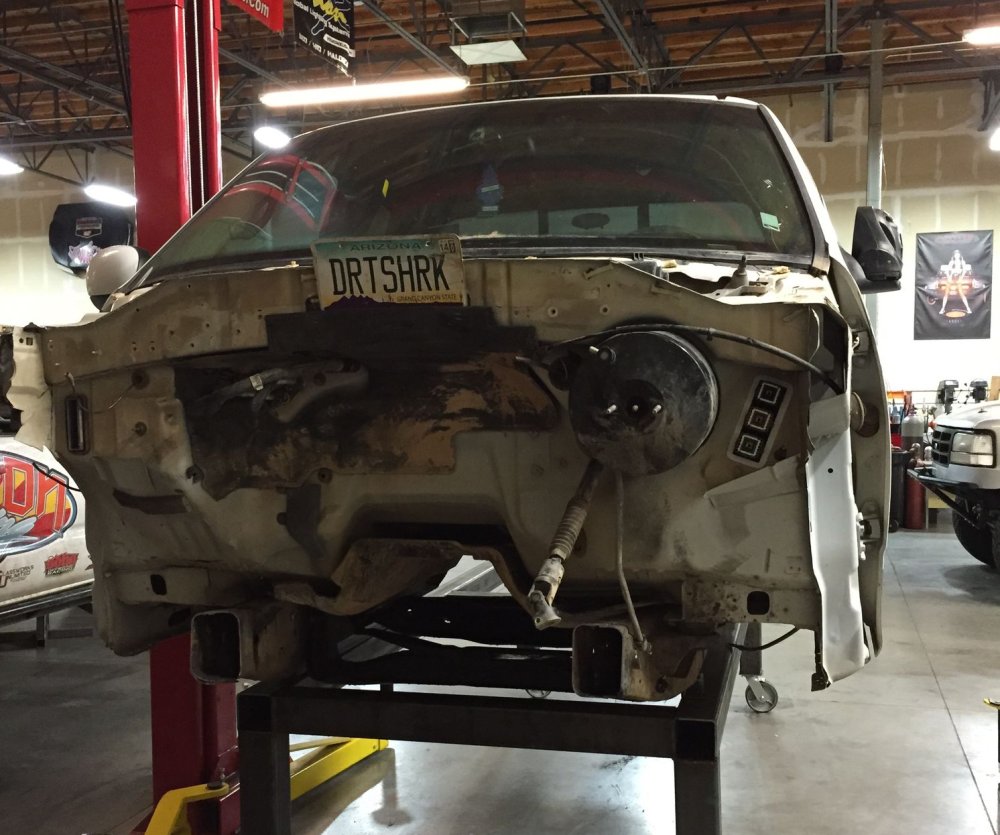

As time went on, fnnrNArnner74 continued to enjoy his modified 2001 F-150 while buying other trucks for daily driving purposes. At one point, he was badly injured in an off-roading accident and while laid up, he decided to take Project Dirtshark in a whole different direction. The entire truck was cut up and the end goal is a fully-built race truck with a tube chassis, a race engine and a long list of parts which prevent it from being a reasonable street truck.

There have been no more updates, but below is the final picture of the Dirtshark as we knew it on the forum.
