Where in a 2005 F-150 FX-4 would I find the build sheet?
The title pretty much spells it out, colour me curious, I know all about my truck from running the VIN with the VIN decoder, I just want to see everything about it.
So does anyone know where the build sheet would be?
Build sheets are not going to be found in most modern vehicles. They were a product of "pre-technology" manufacturing when the line worker had to look at a sheet of paper to determine which steering wheel he was supposed to put in a car as it rolled by his station. Now most of these decisions are programmed by computer at the factory and the correct component is simply placed in its proper location in a queue of parts -- all the assembly line worker has to do is grab the next part off the line and he should be good to go.

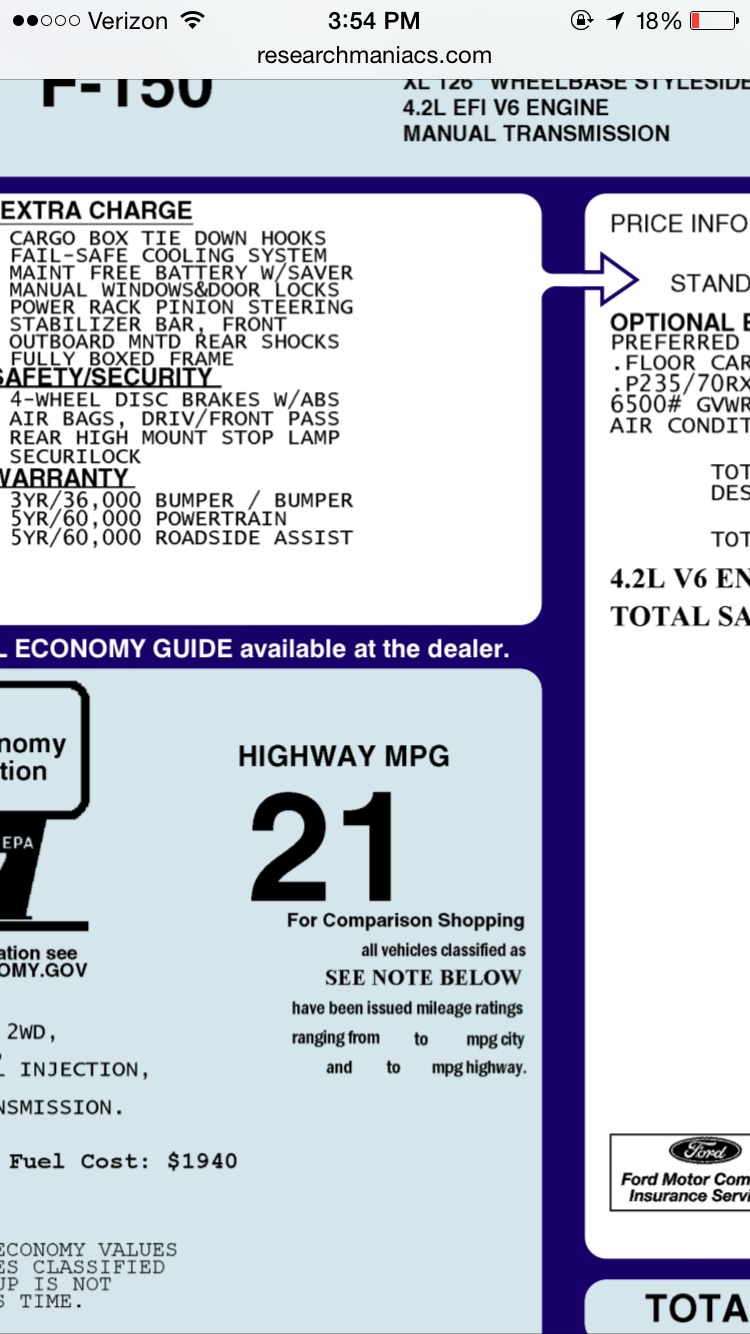

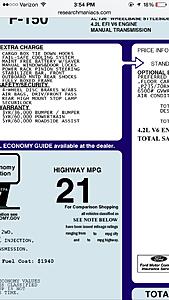

Here's a window sticker if you punch your vin in...
I think the only issue with that is 2006 and older are not available. I found my 2007 truck window sticker on there but I tried with my previous 2004 and was unsuccessful.
When I used to run the Hankook highway tires, I averaged 21-23 mpg doing 69 mph.
Now I am running these General Grabber AT2, and now getting 16-17 mpg.
Tires make a huge difference in fuel economy.
That's a pretty big hit. When I had LT265/70-17 my mileage went down. Now that I went back to p245/70-17, im back where I was before (about 21 highway, 16-17 city) I had the 245/70-17 Firestone AT's before the bigger tires too. That's why I went back.
Build sheets are not going to be found in most modern vehicles. They were a product of "pre-technology" manufacturing when the line worker had to look at a sheet of paper to determine which steering wheel he was supposed to put in a car as it rolled by his station. Now most of these decisions are programmed by computer at the factory and the correct component is simply placed in its proper location in a queue of parts -- all the assembly line worker has to do is grab the next part off the line and he should be good to go.
Okay, great, thank you and thank you to everyone that's posted, especially for those that gave links to get window stickers, etc.
Problem with them, they all want money for their respective documents. All I want to find out is when my truck rolled off the assembly line, date and time.
That's IT!!!
Okay, great, thank you and thank you to everyone that's posted, especially for those that gave links to get window stickers, etc.
Problem with them, they all want money for their respective documents. All I want to find out is when my truck rolled off the assembly line, date and time.
That's IT!!!
Primary Features
Build Date: 17.12.2004
Vehicle Line: F150
Body Style: Single Cab (2 Door)
Version: 150
Engine: 5.4L 3V V8
Transmission: 4 Spd A/T AODEW/4R75E W/TSS
Drive: LHD 4WD (PTD)
Axle Ratio: 3.73
Emission: With 49 State/Non Green State Req
Air Conditioning: Manual Air Conditioning
Paint: Dark Shadow Grey
Click to collapse
Minor Features
Ebony Interior
Impulse
Front Door Scuff Plates
With Cargo Load Area Shelf
Stone Cuffs-Front MIC Black
With Rear Mic Black Stone Cuffs
With 6.5' Styleside Box
Less Pickup Side Rails
With Pick-Up Tie Hook - Inner
Less Pickup Box Extender
With Base Payload Package
126"/3200MM Wheelbase
FX 4/Image And Power Off Road
(-) Version Packages
Kansas City Plant Build
U.S. Sales
Less Special Equipment Package
F150 Sales Badge
Less Military Vehicles
With Power Equipment Group
Less Memory Package
NAAO Core Market
2005 Job No.2 Program Control
With On-Board Diagnostic System
"US" Tailgate Badge
Less Special Language Label
Owner Hand Book Pack
With Power Front Windows
With Fixed Rear Vent Quarter Window
With Privacy Glass
With Sliding Rear Window
Less Heated Rear Window
Mini Overhead Console W/Stor
Less Floor Mounted Console
Fixed Foot Pedals
Front Floor Rubber Mats
Less Rear Floor Mats
With Carpet Floor Covering
Sunvisor Less Mirror - Drivers (I've got a drivers mirror, this is WRONG!!!)
With Sunvisor Mirror - Passenger
Running Boards-Tubular Anod Alum
With Body Coloured Front Grille
With Grey Wheel Lip Moulding
With Electrochromic R/View Mirror
With Driver Electric/Heated Mirror
With Pass Convex Elec/Heated Mirror
With Black Exterior Mirror
With Signal Mirror System
Less Adhesive Mirror Backing
With LH Manual Lumbar Support
With RH Manual Lumbar Support
Less Temp Control Driver Seat
Less Temp Control Passengers Seat
Less 2nd Row Rear Seat
Less 2nd Row Folding Armrests
With Driver 2 Way Mnl. Seat Adjust
With Pass 2 Way Manual Seat Adjust
With Heavy Duty Trailer Towing
With Front Towing Hook
Exterior Door Handle - Black
Single Cab (2 Door)
With Central Locking System
With Door Entry Remote Control Unit
With Keyless Entry System
Less Sun Roof
Less Body Tu-Tone Paint
Front Bumper Painted Accent Colour
Rear Bumper - Step Body Colour
With Front Licence Plate Bracket
Less Air Curtain Restraint
Seat Integrated Restraints
Centre Position 3 Pt Non Sir
With 18" Steel Spare Wheel
Premium Off Road Frt Shock Absrbers
Premium Off Road Rr Shock Absorbers
Spare Tyre Lock
7.5J X 18" Cast Alloy Wheel
LT275/65R 18C A-T OWL
Spare Tyre - LT275/65R18 A/T OWL
Market Road Condition - General
With Super Engine Cooling System
Less Immersion Heater
With 49 State/Non Green State Req
3.73
Rear Axle Limited Slip Differential
With 9.75" Axle
5.4L 3V V8
Single Exhaust
Less Exhaust Pipe Extension
Less Anti-Spin Traction System
Normal Fuel Fill
Heavy Duty Aux Trans Oil Cooler
Electric Trans Case With IWE'S
With Skid Plates
With Single Fuel Tank
With Non Locking Fuel Cap
For Unleaded Fuel
Leather Steering Wheel
With Speed Control
Less Steering Wheel Audio Controls
With MPH/KMH Speedometer
With Tachometer
With Compass/Thermometer In Cluster
Less Message Centre
Less Reverse Proximity Sensor
Heavy Duty Battery
Prem AM/FM Stereo/CD CHG/CLK/MP3
With NAAO Radio Frequency
Less DVD Player
Less Radio Subwoofer
Less Daytime Running Lamps
With Bright Headlamps
With Front Fog Lamps
With Illuminated Entry
Tail lamps - Level 1
With Automatic Headlamp On/Off
Dark Shadow Grey
Generic Country Group 1
150 Series
4L34 5310 CAA Left Front Coil
4L34 5310 CAA Right Front Coil
4L34 5560 MK Left Rear Leaf
4L34 5560 MK Right Rear Leaf
Less B&A Control Codes Issue 030388
Less B & A Control Codes (9270)
Decal-FX4 Quad Coloured
4 Spd A/T AODEW/4R75E W/TSS
F150
(+)"USA"
(-) GVMT Service Administration
(-)"CDN"
(-)"GU"
(-)"BRN"
(-)"BZ"
(-)"IS"
(-)"ATG"
(-)"IL"
(-)"AW"
Less Ultimate Package
Less Fleet
I just checked, 12/17/2004 was a Friday, but despite what they say about vehicles that are made on Fridays, I haven't had more than usual problems with mine
