Charging/Electrical System Big 3 Upgrade (Extremely Pic-Heavy)
#18
#19

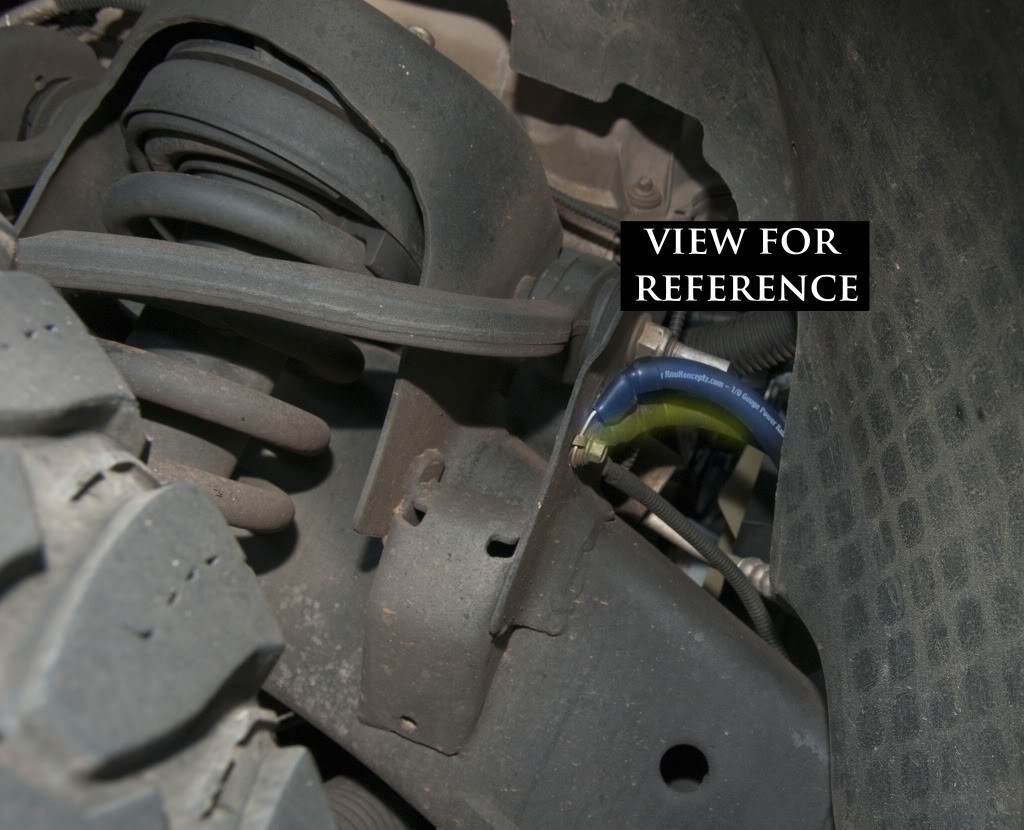

Here are the new pics. Not as in-depth as before but hopefully they are enough to help. The pictures should be self-explanatory when it comes to cable locations, but let me know if you have any questions. I'll repeat what I said in the original post: this isn't a set-in-stone way....it's the way I did it.
#20
#21
#24
#25
For the soldering, I'd recommend finding someone who has a bench vise you can use. It makes it a lot easier in both holding the wire steady and in crimping the lugs on.
As for soldering itself, I'd suggest a roll of thick solder and a mini propane torch. With cable this size, it would take forever to use regular thin-wire solder and a little touch-based solder gun.
Pictures speak louder than words, so instead of the first picture, do the second picture. If you can find thicker solder, great.....if not, as long as you have the propane torch it will work.
When you go to solder this way, keep the flame on the backside of the lug. You want to heat up the metal of the lug and cable enough to make the solder melt and seep down between the strands of cable. It makes for a much stronger connection. Also, this comes after the crimping.
This may or may not help, too:
http://www.youtube.com/watch?v=gBDdbALcgeU
As for soldering itself, I'd suggest a roll of thick solder and a mini propane torch. With cable this size, it would take forever to use regular thin-wire solder and a little touch-based solder gun.
Pictures speak louder than words, so instead of the first picture, do the second picture. If you can find thicker solder, great.....if not, as long as you have the propane torch it will work.
When you go to solder this way, keep the flame on the backside of the lug. You want to heat up the metal of the lug and cable enough to make the solder melt and seep down between the strands of cable. It makes for a much stronger connection. Also, this comes after the crimping.
This may or may not help, too:
http://www.youtube.com/watch?v=gBDdbALcgeU
Last edited by mblouir; 08-11-2010 at 01:14 PM.
#26
here are the new pics. Not as in-depth as before but hopefully they are enough to help. The pictures should be self-explanatory when it comes to cable locations, but let me know if you have any questions. I'll repeat what i said in the original post: This isn't a set-in-stone way....it's the way i did it.
Also my truck grounds run towards the tranny? Am i following the correct set comming off of the battery?
#27
Question......
This even seems like overkill to me, I know, you don't need to reiterate.
I have a chance to grab some ginormous cable from where I work. I mean, this stuff looks bigger than 1/0 AWG. Anyone think something will go wrong if the cable is too big? Pass too much current? Or is there no worries? This stuff is seriously huge, and I have a way to get terminals for my battery and such so its not a problem. I mean.....it's free, so why not.
Thanks guys
This even seems like overkill to me, I know, you don't need to reiterate.
I have a chance to grab some ginormous cable from where I work. I mean, this stuff looks bigger than 1/0 AWG. Anyone think something will go wrong if the cable is too big? Pass too much current? Or is there no worries? This stuff is seriously huge, and I have a way to get terminals for my battery and such so its not a problem. I mean.....it's free, so why not.
Thanks guys
#28
#29
Old thread I know but the last question was never answered...
It is impossible for the wire to be too big. Current flows in accordance with demand and bigger wire simply means that you lose less voltage when higher current is demanded. That means that the wiring is more efficient. More efficient wiring is whole point of this upgrade.
It is impossible for the wire to be too big. Current flows in accordance with demand and bigger wire simply means that you lose less voltage when higher current is demanded. That means that the wiring is more efficient. More efficient wiring is whole point of this upgrade.
#30
Hi,
Can you help me to be able to see the photos in your post on the three big grounds. I am getting a empty square with no photo in the box. The instructions don't say exactly where these grounds are located at, i need to see pictures of the: (engine to chassis,) (battery to chassis) (battery to Alt. ) i check back this evening to see if you posted them to my reply.
Thanks,
Gary
Can you help me to be able to see the photos in your post on the three big grounds. I am getting a empty square with no photo in the box. The instructions don't say exactly where these grounds are located at, i need to see pictures of the: (engine to chassis,) (battery to chassis) (battery to Alt. ) i check back this evening to see if you posted them to my reply.
Thanks,
Gary
