Post Auxiliary backup lights installed (How to/pics)

Well I have another thing off my list of things to do. I have wanted to install auxiliary backup lights for sometime now and finally got around to doing it. I ordered the lights from Jcwhitney.com; they are the Navigator (NV-534). They were 46.99 for the set. They are actually fog lights but there low profile design was just what I was looking for. Each light is 55 watts a piece; they come with the wiring, fuse, switch, mounting brackets, and hardware.
I opted to buy a new fuse holder that was more heavy duty with a lid along with a new switch, and the wiring since I needed much more then they gave me. I also ran 14G wire over the 16G they supplied since I was more then tripling the length. I am also using a relay so they will come on only when the switch activated with the key in the ON/RUN position. I also did NOT tap into the reverse wire was I did not want them on every time I backed up, only to be activated with the switch.


Here are some pictures along with a little how to.

Enjoy

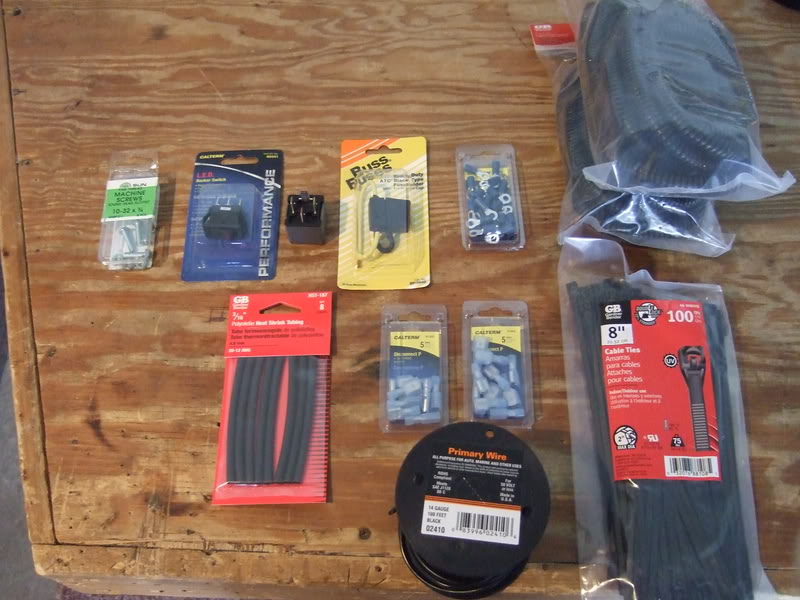

The parts List
-100ft 14G wire
-3/8in x 10ft slit tubing (2 packs)
-8in zip ties
-1/4 eyelets
-14/16g disconnect crimps
-Heavy duty fuse holder with lid
-3/16 heat shrink
-Relay
-Red L.E.D toggle Switch
-10-32 x 3/4 machine screws
-L-bracket
-Electrical tape (2 rolls)
Click the image to open in full size.


For the Relay

85-Ground
86-From Switch
87-To lights
30-From fused battery

The Switch
1-Ground
2-To 86
3-12v Ignition (under steering column Dk. blue/Lt. green)

When everything is connected tape/ zip tie it up nicely under the dash out of the way.

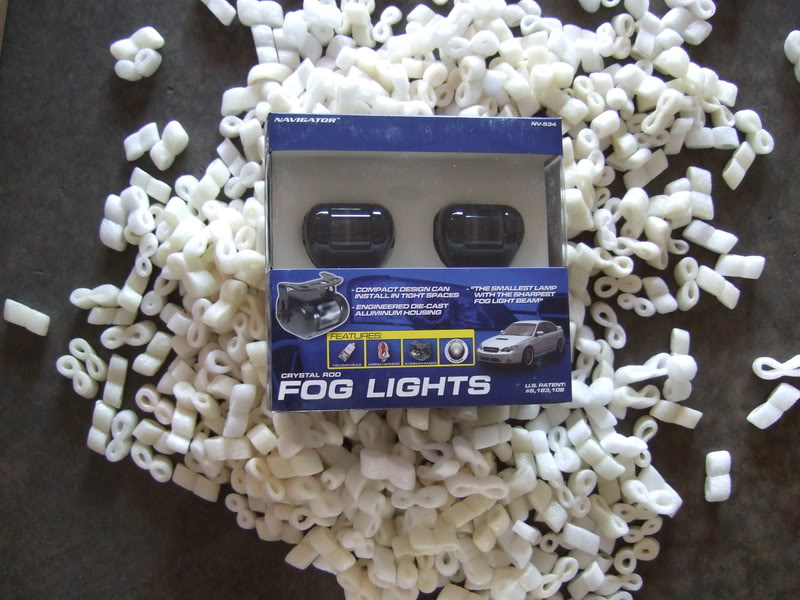

Here are the lights in the box
Click the image to open in full size.

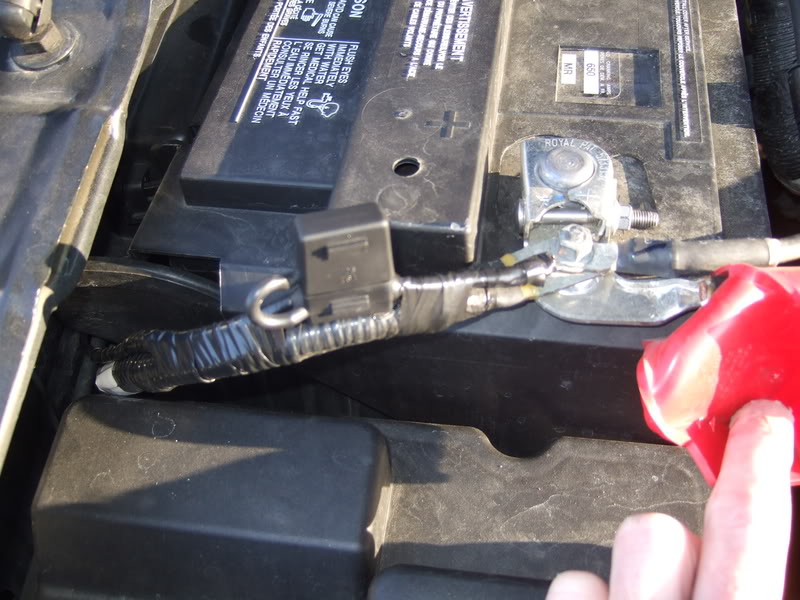

Here’s the fuse holder, crimped an eyelet on one end and connected to the positive battery bolt. I ran the wire behind the battery, takes a little work to get it through.
Click the image to open in full size.

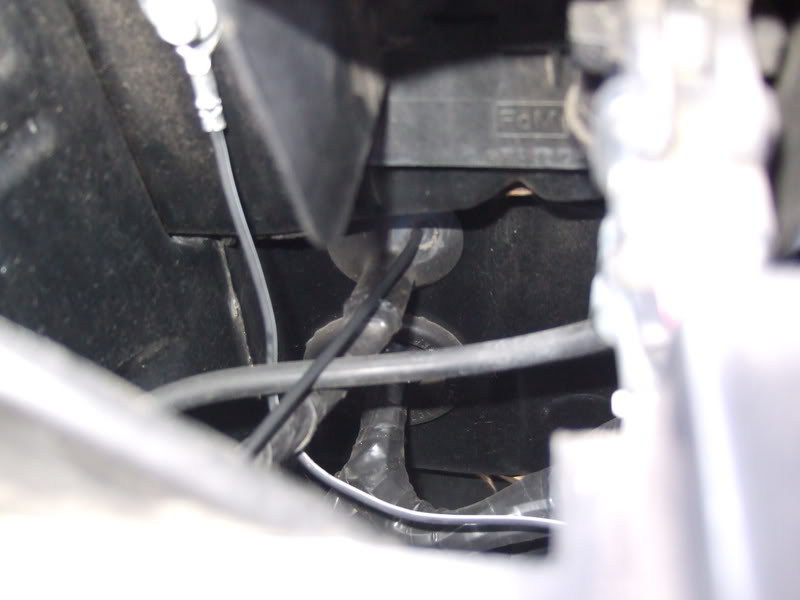

I ran the wire into the cab using the same grommet as the power feed for the fuse box uses since I was already on top of it, I used a coat hanger to pull the wire through. You need the take the glove box out and reach to the firewall and find the wire coming out. Once it is pulled through follow the existing wiring looms across the dash to the switch location, taping the wire down every 6-8”. It is a very tight reach to the fire wall from inside so you will need to bend your arm in ways you never thought were possible.
Click the image to open in full size.
Reply With Quote
  #2
Old 05-05-2008, 07:44 PM
Technical Article Contributor

Join Date: Nov 2005
Location: Land of 10,000 Lakes
Vehicle: 2006 Ford F150
Posts: 889
Next I pulled the wire that will be going to the lights. Again I used the factory grommet in the driver’s side sill. Once the wire was though I put slit tubing over it and wrapped it in electrical tape, as extra protection from water and salt. I just followed the existing wiring looms all the way to the back of the truck using Zip ties every 8” or so to secure it.
Click the image to open in full size.

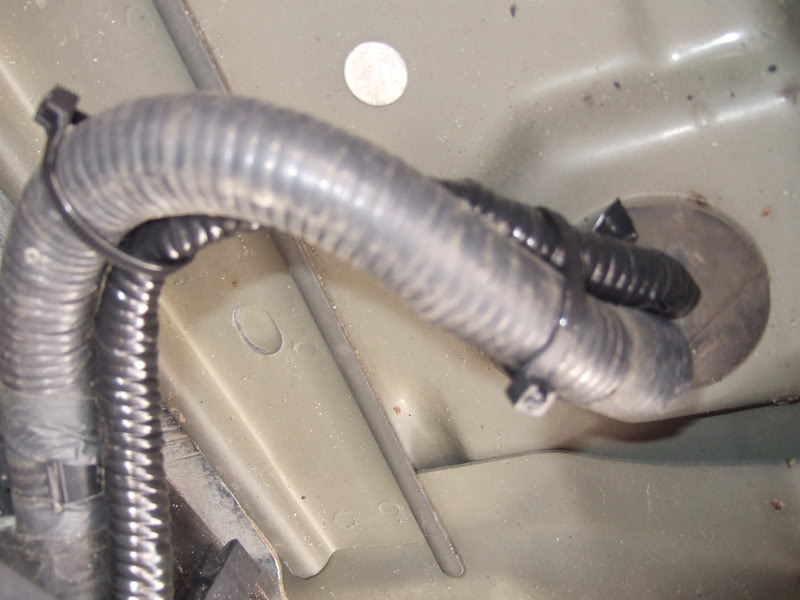

Here is where it is coming out of the sill plate.
Click the image to open in full size.

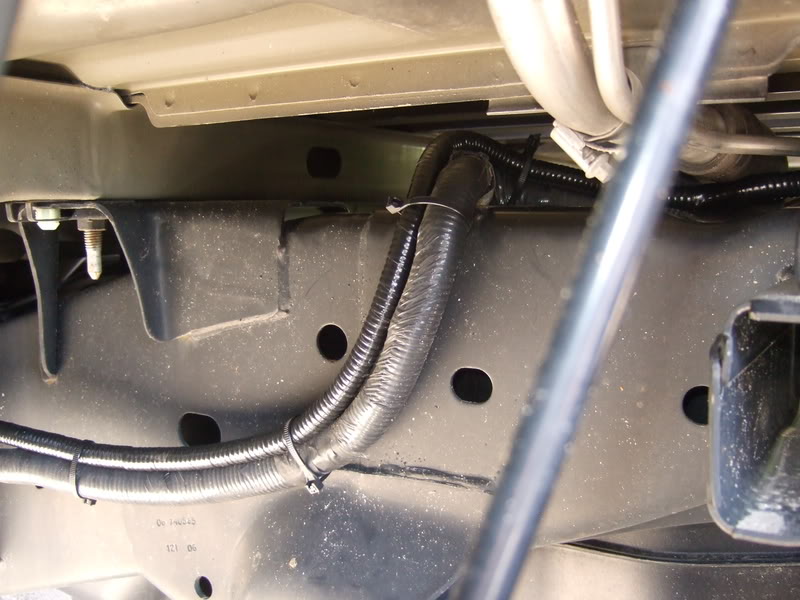

Here it is running down the frame.
Click the image to open in full size.

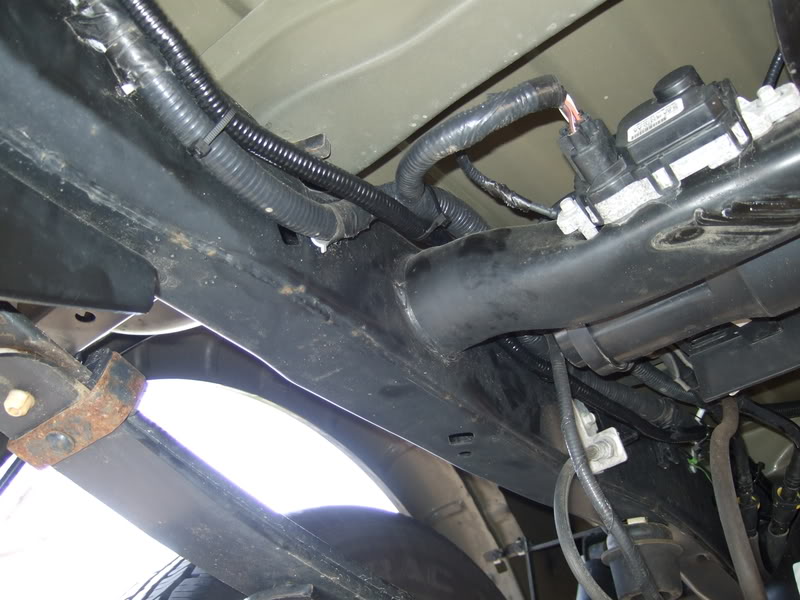

Crossing over to the inside of the frame, still following the factory loom.
Click the image to open in full size.

Last edited by blackjack8900; 06-06-2009 at 12:24 AM.
Reply With Quote
  #3
Old 05-05-2008, 07:46 PM
Technical Article Contributor

Join Date: Nov 2005
Location: Land of 10,000 Lakes
Vehicle: 2006 Ford F150
Posts: 889

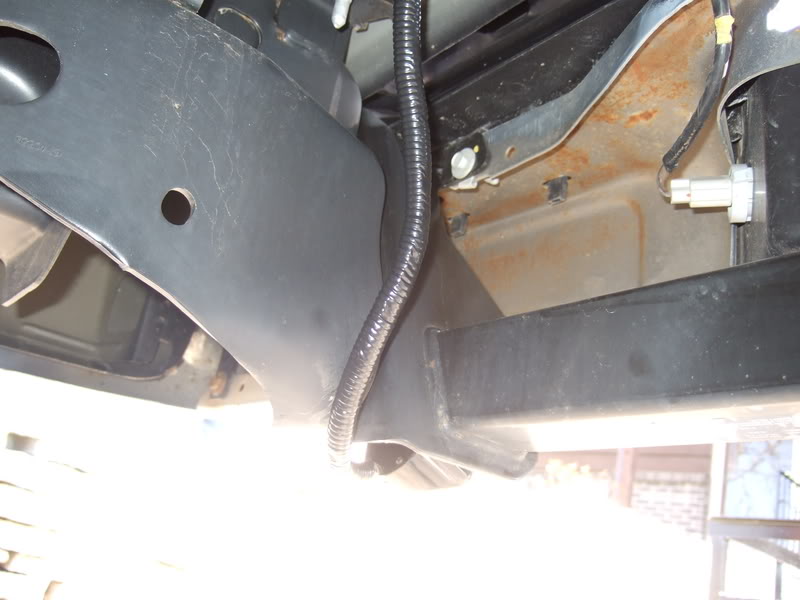

Again following the inside of the frame to the back of the truck
Click the image to open in full size.

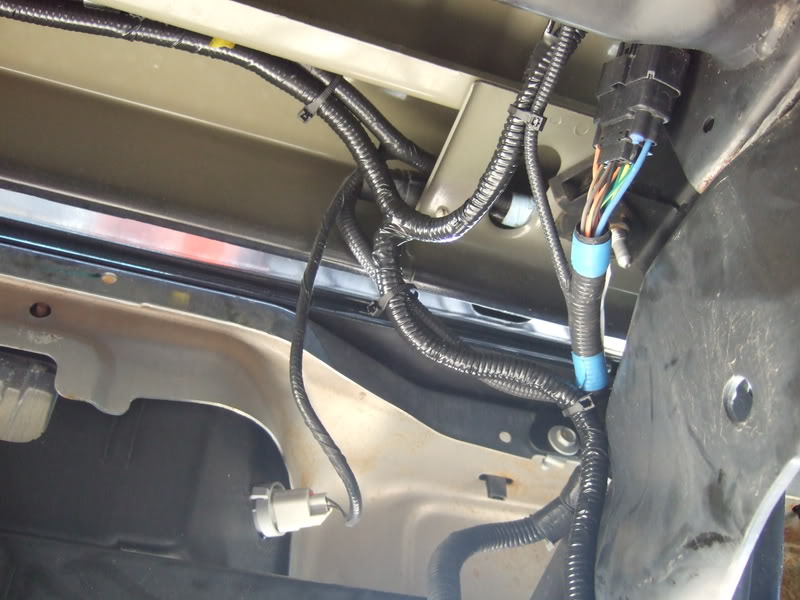

At the back of the truck where it splits off to each light.
Click the image to open in full size.


I mounted the lights on the bumper just past the sides of the hitch, even on each side. The screws they gave me looked like wood screws with very course threads and would not bite, so I simply used some brass screws I had. The lights also need to be grounded so I used the grounding point were the 7-pin connecter is grounded to above the spare tie on the frame cross member.
Click the image to open in full size.

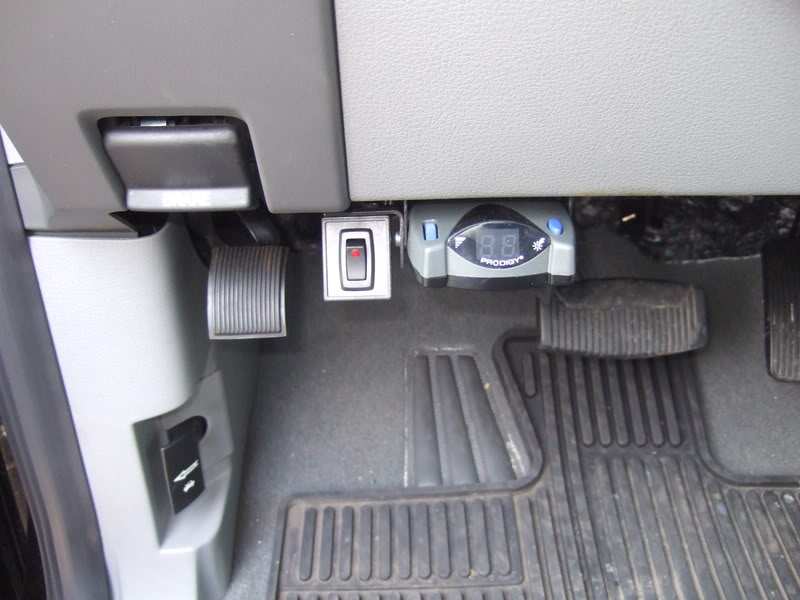

I mounted the switch right next to the brake controller with an L bracket and two machined nuts. I was going to put it below the headlight switch or along side the cigarette lighter but it fits perfect here and I didn’t have to drill the dash then. I secured it from the side by using the same screw that the brake controller and two machined screws secured the switch bracket to the L bracket. I also spray painted it black to match. For grounding the switch I used the existing grounding point in the kick panel.
Click the image to open in full size.
Reply With Quote
  #4
Old 05-05-2008, 07:48 PM
Technical Article Contributor

Join Date: Nov 2005
Location: Land of 10,000 Lakes
Vehicle: 2006 Ford F150
Posts: 889

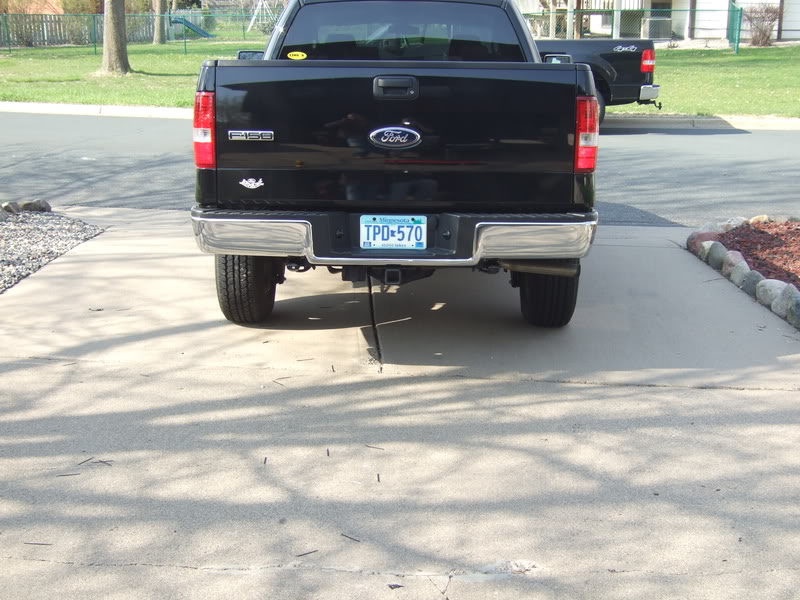

Day time
Click the image to open in full size.
Click the image to open in full size.

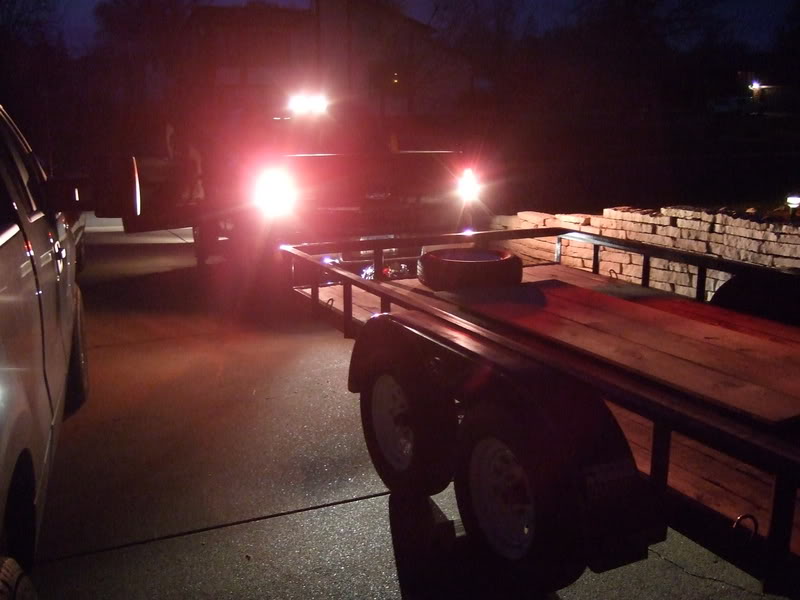

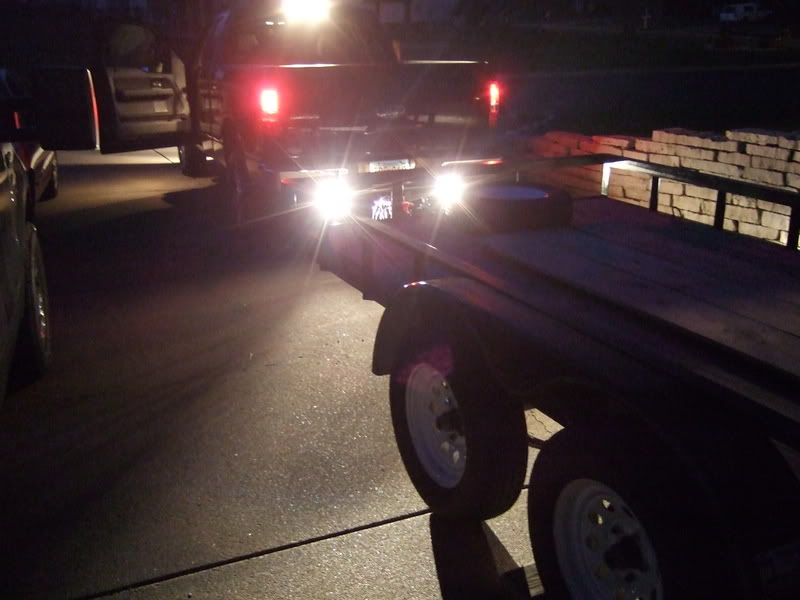

LET THERE BE LIGHT
Click the image to open in full size.
Click the image to open in full size.



Over all I am very pleased with them, they put out a good amount of light, yet during the day they are not extremely noticeable. They light up the sides of the trailer real good which was why I put them on. As backing up at night with less then a foot of clearance on each side was a pain when you could not see the sides. Now even hooking up at night I will have light to see what I am doing. They will still be very useful without the trailer also.
Reply With Quote
  #5
Old 05-05-2008, 07:49 PM
Technical Article Contributor

Join Date: Nov 2005
Location: Land of 10,000 Lakes
Vehicle: 2006 Ford F150
Posts: 889
One more with reverse lights on.
Click the image to open in full size.




Total time 3.5hours
__________________
2006 F-150 XLT Supercab 5.4 3.73ls
2006 F-350 Lariat Supercab 6.0 diesel 3.73ls- Boss power V-XT
Reply With Quote
  #6
Old 05-05-2008, 07:54 PM
Member

Join Date: Nov 2006
Location: DFW Metroplex
Vehicle: 2013 Ford F150
Posts: 54
VERY clean and professional. I like it! Great job!
Reply With Quote
  #7
Old 05-05-2008, 08:00 PM
Senior Member

Join Date: Apr 2008
Location: Fairfield,CA
Vehicle: 2008 Ford F150
Posts: 1,016
Looks great!! Those lights are pretty bright. :thumbsup:
__________________
Reply With Quote
  #8
Old 05-05-2008, 08:12 PM
Member

Join Date: Mar 2008
Location: Calgary, Canada
Vehicle: 2004 Ford F150
Posts: 18
Very Clean Job......Nice Work
Reply With Quote
  #9
Old 05-05-2008, 08:51 PM
Member

Join Date: Jun 2007
Location: Clarington Ohio
Vehicle: 2005 Ford F150
Posts: 100
Thats slick. Nice and clean install. But do you need the relay? Cuz I figure it would be nice to use the lights with out the key on.
__________________
2005 F150 XLT Supercab 5.4 auto 4x4. Flow Master 40 SI/DO Ranch Hand Grille Guard on the way!!!!!
Reply With Quote
  #10
Old 05-05-2008, 09:34 PM
Technical Article Contributor

Join Date: Nov 2005
Location: Land of 10,000 Lakes
Vehicle: 2006 Ford F150
Posts: 889
Thanks for the complements everyone!






Quote:
Originally Posted by welder691 View Post
Thats slick. Nice and clean install. But do you need the relay? Cuz I figure it would be nice to use the lights with out the key on.
No, you don't have to use the relay, I used it because it protects them from accidentally being left on and draining the battery.
__________________
2006 F-150 XLT Supercab 5.4 3.73ls
2006 F-350 Lariat Supercab 6.0 diesel 3.73ls- Boss power V-XT
Reply With Quote
  #11
Old 05-05-2008, 10:19 PM
Senior Member

Join Date: Sep 2005
Location: Wichita KS
Vehicle: 2004 Ford F-150
Posts: 2,926
Good Job! I've been meaning to do this myself but I plan on just using the reverse lights as the trigger for the relay.
Reply With Quote
  #12
Old 05-05-2008, 10:40 PM
Senior Member

Join Date: May 2006
Location: Jacksonville, FL
Vehicle: 2006 Ford F-150
Posts: 579
Looks good man! I did this install a while back. Opted for the Piaas and couldn't be happier. I think my rear lights are better than my fronts! haha

heres the link
*Pictures* Reverse Lights and Camera and Rapid Hitch

Click the image to open in full size.
__________________
Reply With Quote
  #13
Old 05-05-2008, 10:54 PM
Senior Member

Join Date: Aug 2007
Location: Des Moines, IA
Vehicle: 2004 Ford F-150
Posts: 2,473
great write up!
__________________

"Half the ability to get the job done is not being afraid to try. 90% of the time you wont screw it up any worse then it already is"
Reply With Quote
  #14
Old 05-05-2008, 10:59 PM
Senior Member

Join Date: Dec 2006
Location: Tuscaloosa, AL
Vehicle: 2006 Ford F150
Posts: 881
I've been looking at those lights before to mount on the sides of my truck. Would you mind snapping a couple pics of the beam pattern? :beers:
__________________
Reply With Quote
  #15
Old 05-05-2008, 11:29 PM
Senior Member

Join Date: Mar 2007
Location: NJ
Vehicle: 2000 FORD F-150
Posts: 348
nice job, very clean. looks like ford put them in from factory:thumbsup:

i like that those lights are black when off, i hate looking at mine during day time, light blue plastic :rolleyes:
Reply With Quote
