Please Help ID Vacuum Hose
Hi Everyone,
It's been a long time since I've posted, but I ran into an issue today changing spark plugs. The plug change went great, but right before I started I accidentally broke a vacuum line. I tried tying my PCM cables out of the way, and as soon as this hose moved 1-2" it just snapped in half. The truck was off, of course, when this happened, and I heard air bleed off for a few seconds.

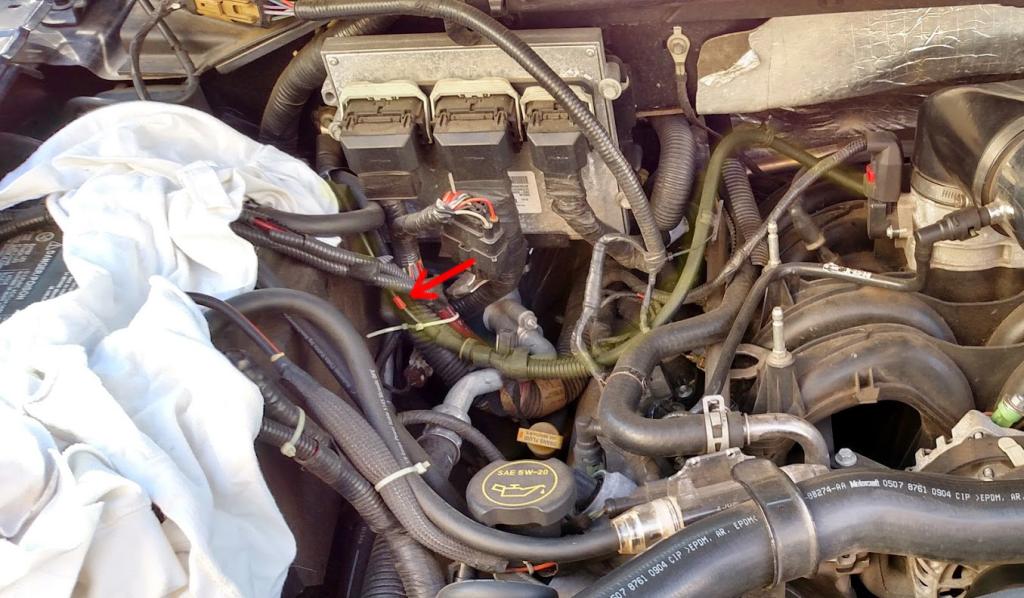

It's the one highlighted yellow with red tape on it (see the red arrow). I've tried looking through my manual & browsing pictures on the internet....but thus far no luck. I'm not a vacuum guy by any means. The best description I can give is that it comes over from the driver's side (large canister) as a larger tube. Right near the white zip tie it reduces down to a small (~1/8"OD) tube that runs behind the battery.
It doesn't seem to affect startup at all, and the truck idles fine. The part number tagged on it is 4L34-19C828-AC.
Any ideas what it is? If so, how easy/hard would it be to replace?
Thank you in advance for your help!
-Matt
It's been a long time since I've posted, but I ran into an issue today changing spark plugs. The plug change went great, but right before I started I accidentally broke a vacuum line. I tried tying my PCM cables out of the way, and as soon as this hose moved 1-2" it just snapped in half. The truck was off, of course, when this happened, and I heard air bleed off for a few seconds.
It's the one highlighted yellow with red tape on it (see the red arrow). I've tried looking through my manual & browsing pictures on the internet....but thus far no luck. I'm not a vacuum guy by any means. The best description I can give is that it comes over from the driver's side (large canister) as a larger tube. Right near the white zip tie it reduces down to a small (~1/8"OD) tube that runs behind the battery.
It doesn't seem to affect startup at all, and the truck idles fine. The part number tagged on it is 4L34-19C828-AC.
Any ideas what it is? If so, how easy/hard would it be to replace?
Thank you in advance for your help!
-Matt
Last edited by mblouir; 03-07-2015 at 10:41 PM.
#2
#3
#4
Hi mblouir, I have recently just broke that same vacuum line and was wondering how you fixed it. I have researched that part number but haven't been able to find a correct part. Thank you!
#5
It bought me enough time to find a replacement through the dealer, which took a couple of days. I'll see if I can find the assembly I had to buy.
#6
Found it!
Double-check that this fits your vehicle, but I recall needing to purchase this small assembly. You'll have to remove the battery to gain access to the vacuum reservoir, but it's not a difficult replacement. Leave the old one in and remove the battery. You'll see exactly where it needs to go.
From this high-level assembly, you need the one called out in red (that the original image notes with a dot). It consists of the line plus a few fittings:
Which should be this sub-assembly right here:
http://www.tascaparts.com/oe-ford/4l3z19c828aa
Hope this helps!
-Matt
